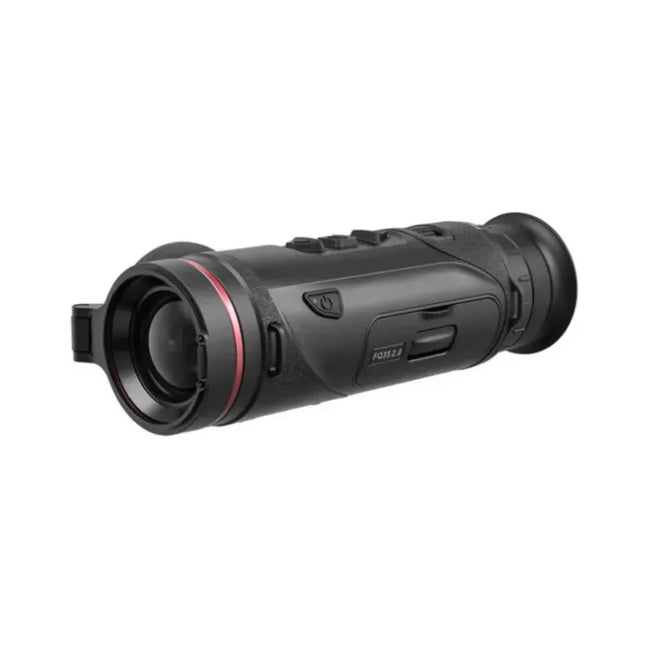

The HIKMICRO Falcon FQ35 2.0 is another impressive thermal monocular with some advanced features. Here are the key specifications:
Resolution: 640x512 pixels
Sensor: 12μm microbolometer with a NETD of <15mK
Lens: 35mm f/1.0 objective lens
Magnification: 1.82x to 14.56x with up to 8x digital zoom
Field of View: 12.54° horizontal and 10.05° vertical
Display: 0.49-inch OLED screen with a resolution of 1920x1080
Battery Life: Up to 6.5 hours with a replaceable 18650 battery
Durability: IP67 rating, making it dustproof, waterproof, and shockproof
Operating Temperature: -20°C to 55°C
Weight: 486g
The Falcon FQ35 2.0 is designed for various applications such as wildlife observation, hunting, search and rescue, and marine scenarios. It also features the HIKMICRO Shutterless Image System (HSIS) for a smooth viewing experience and an Image Pro mode to enhance image detail.

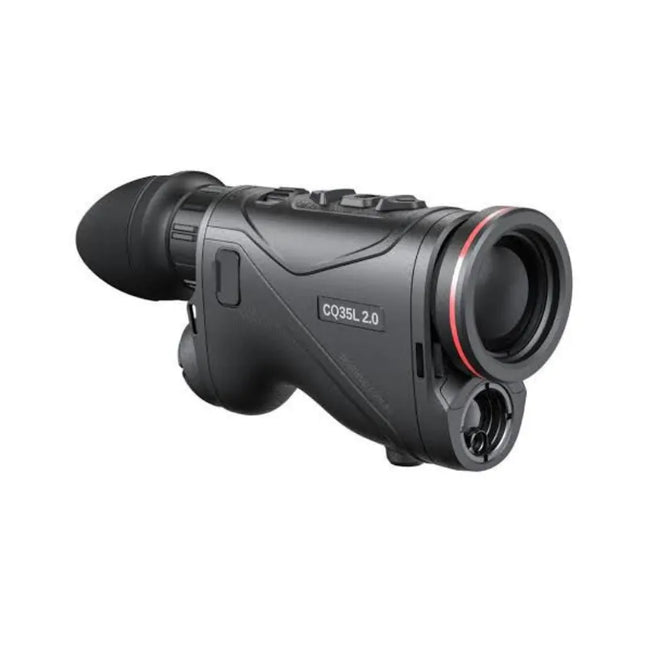

The HIKMICRO Condor 2.0 CQ35L is a high-performance thermal monocular designed for hunters and outdoor enthusiasts. Here are some key features:
Resolution: 640x512 pixels
Sensor: 12μm microbolometer with a NETD of <15mK
Lens: 35mm f/1.0 objective lens
Magnification: 1.9x to 15.2x with up to 8x digital zoom
Field of View: 12.5° horizontal and 10.0° vertical
Display: 0.49-inch OLED screen with a resolution of 1920x1080
Battery Life: Up to 6.5 hours with a replaceable 21700 battery
Durability: IP67 rating, making it dustproof, waterproof, and shockproof
Operating Temperature: -30°C to 55°C
Weight: 458g
Integrated Laser Rangefinder (LRF): Measures distances up to 1,000m with accuracy
The Condor 2.0 CQ35L also features the HIKMICRO Shutterless Image System (HSIS) for a smooth viewing experience and an Image Pro mode to enhance image detail. It's designed for ergonomic one-hand operation and offers Wi-Fi connectivity, auto screen-off for stealth, and photo/video recording via the SIGHT APP.

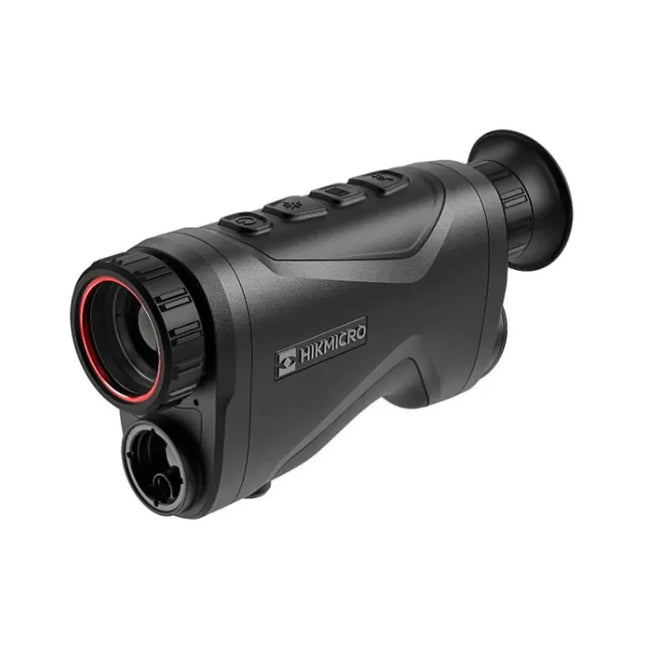

Hikmicro Condor CH25L Thermal Imager Monocular
The Hikmicro Condor CH25L is a premium thermal imaging monocular, combining advanced features with compact design for unparalleled performance in the field. Whether for hunting, wildlife observation, or search and rescue, this thermal imager delivers exceptional clarity and precision.
Key Features:
High-Resolution Sensor: Equipped with a 384x288 resolution 12μm thermal sensor for crisp and detailed imaging.
Low NETD: Outstanding sensitivity with <20mK ensures sharp thermal detection, even in challenging conditions.
25mm Lens: Provides an excellent balance of field of view and detection range.
Integrated Laser Range Finder (LRF): Measure distances with precision to improve situational awareness and target acquisition.
Enhanced Imaging Modes: Multiple color palettes and thermal enhancements for versatile use in different environments.
Durable Build: Rugged and weatherproof for reliable performance in outdoor conditions.
Compact and Lightweight: Easy to carry and operate, ideal for long outings or quick setups.
Experience the cutting-edge technology of the Hikmicro Condor CH25L, designed to deliver superior thermal imaging capabilities for professionals and enthusiasts alike.

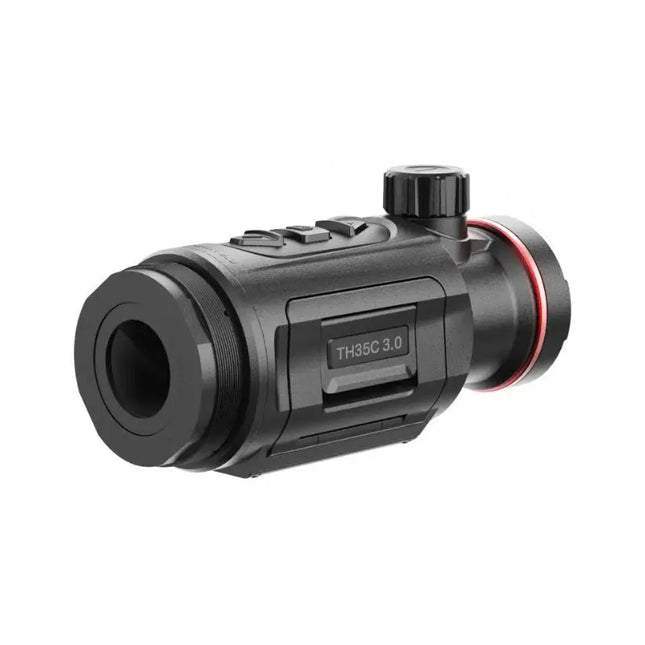

The HikMicro TH35C 3.0 Thunder 35mm Clip-On Thermal Monocular is a cutting-edge thermal imaging device designed for hunters and shooters. Here are some key features:
Pros:
High-Resolution Thermal Detector: 384 x 288 resolution with a NETD (Noise Equivalent Temperature Difference) of less than 15 mK, providing detailed thermal images.
35mm Lens: Offers a detection range of up to 1800 meters.
OLED Display: 1920 x 1080 resolution 0.49-inch display for clear and detailed images.
Shutterless Technology: Eliminates the need for a physical shutter, allowing continuous shooting without interruptions.
Quick-Release Clamp System: Easily attaches and detaches from your existing optical scope.
Battery Life: Rechargeable and replaceable Li-ion battery with up to 6 hours of continuous operation.
Durability: High shock resistance up to 1000 g/0.4 ms

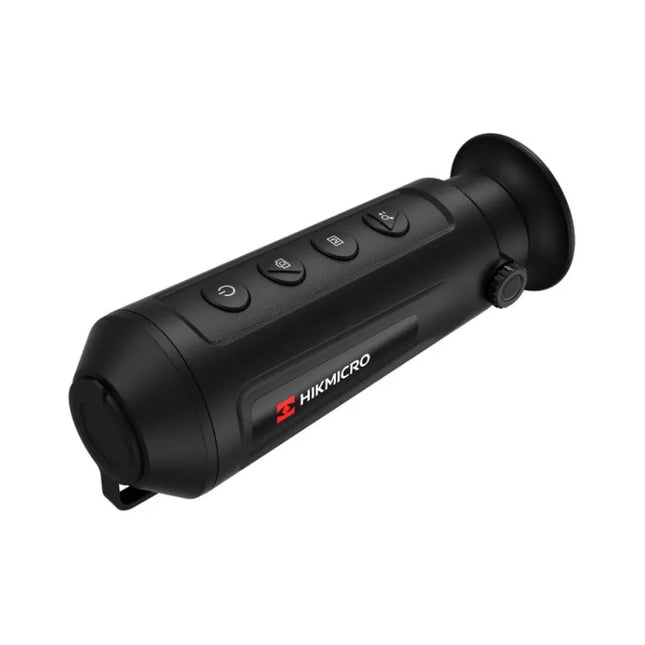

Is the HIKMICRO Lynx LE10 worth it over the Lynx 6mm? The simple answer is yes! The larger 256x192 12um 35mK thermal sensor provides a superb performance out to 100-150m making it a perfect choice for locating and identifying rabbits, birds and squirrels. The super compact HIKMICRO LE10's enhanced performance makes it a perfect choice for rat controllers who are looking to improve their identification ability when scanning farm yards and barns, the larger sensor allows the thermal to pick out higher levels of detail when scanning an area quickly. Like every HIKMICRO product you have the ability stream your vision straight from the thermal to a smart phone or capture the footage and access it within seconds on your phone for easing sharing on social media.

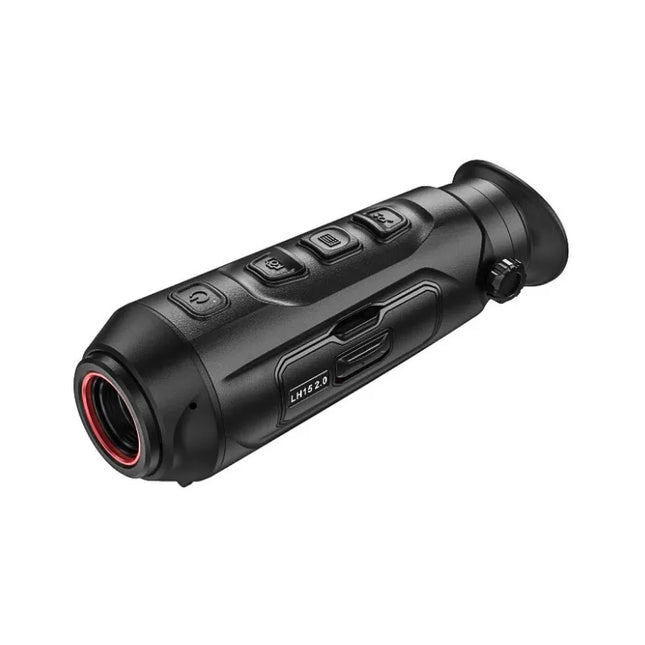

The HIKMICRO Lynx 2.0 LH15 comes with a fixed focus lens system making this model the perfect choice for people wanting a quick pick up and spot thermal monocular, where you do not have to adjust the focus of the device between different ranges. The HIKMICRO Lynx 15mm offers a wide field of view due its 15mm focal length and low base magnification this combination has helped it gain popularity as the choice for woodland deer stalkers allowing them to scan woodlands quickly and efficiently. The new LYNX 2.0 series of thermal imagers all come with HIKMICRO's latest highly sensitive thermal sensor which is a 384x288 12um <20mk which helps to provide a super image despite its entry level price point.
The HIKMICRO LH25 V2.0 LYNX PRO is a high-performance thermal imager monocular designed for various outdoor activities like hunting, wildlife observation, and search and rescue operations. Here are some of its key features:
Resolution: 384x288 pixels with a 12-micron pixel pitch.
Thermal Sensitivity: Less than 20mK, which allows it to detect very slight temperature differences.
Lens: 25mm, providing a good balance between field of view and magnification.
Detection Range: Up to 1200 meters for a 1.7m tall target.
Digital Zoom: 1x, 2x, 4x, and 8x.
Battery Life: Approximately 7.5 hours on a single charge.
Wi-Fi Enabled: Allows real-time sharing and transfer of videos and images.
Durability: IP67 rated, making it dustproof and waterproof.
This device is compact and lightweight, making it easy to carry and use in the field. Its advanced sensor and high sensitivity ensure clear and detailed thermal images, even in challenging conditions.
The HIKMICRO Condor CQ35L is a thermal monocular designed for outdoor enthusiasts, hunters, and security personnel.
High Image Clarity:
The CQ35L features a 384 detector, ensuring clear thermal images.
It boasts a 35mm f/1.0 lens, providing powerful magnification.
The high sensitivity (NETD < 20mK) thermal detector allows easy identification of small details in various weather and light conditions.
Distance Measurement:
Safety is crucial when hunting. The integrated laser rangefinder in the CQ35L allows you to measure distances up to 1,000m with an accuracy of ±1 meter in different scenarios.
Ergonomic Design:
The compact and easy-to-grasp shape design ensures comfortable operation for both left- and right-handed users.
Durability and Reliability:
Constructed with a magnesium alloy, the CQ35L is both durable and lightweight.
It operates in a temperature range of -30°C to +55°C, making it reliable in diverse conditions.
Impressive Detail Recognition:
The sub-20mK NETD rating ensures detailed images in all weather conditions, whether hot, cold, rainy, or foggy.
Detection Range:
The CQ35L offers a detection range of up to 1,800m for man-sized targets.
In summary, the HIKMICRO Condor CQ35L is a versatile thermal monocular that combines clarity, precision, and durability, making it an excellent choice for outdoor activities and security applications. 🌟🔍🔭
The HIKMICRO Lynx LC06S thermal monocular is equipped with a 160×120 infrared detector and a 800 x 600 OLED display. The Lynx series boasts features such as on-board recording, WiFi streaming, a HD OLED display screen. The HikMicro Lynx LC06S is ideal for an entry level thermal monocular due to its affordable price and high quality. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The HikMicro Lynx LC06S is the perfect tool for law enforcement, border patrol, security and hunting.
\
Thermal Module
Image Sensor
VOx Uncooled Focal Plane Arrays
Max. Resolution
160 × 120
Frame Rate
50 Hz
Pixel Interval
17 μm
Response Waveband
8 μm to 14 μm
NETD
Less than 35 mK (@25°C, F# = 1.1)
Lens (Focal Length)
6.2 mm, F1.1
Detection Range
250m
Focus Mode
Focus Free
Min. Focusing Distance
1m
Magnification
1.0× to 4.0× (4×)
Field of View(H × V),
24.7° × 18.7° / 43.8 m × 32.9 m
Degrees / m @100 m
Image Display
Display
800 × 600, 0.32-inch, OLED
Palettes
Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction)
Auto, Manual, External Correction
Mode
Exit Pupil
20 mm
Eye Relief
6 mm

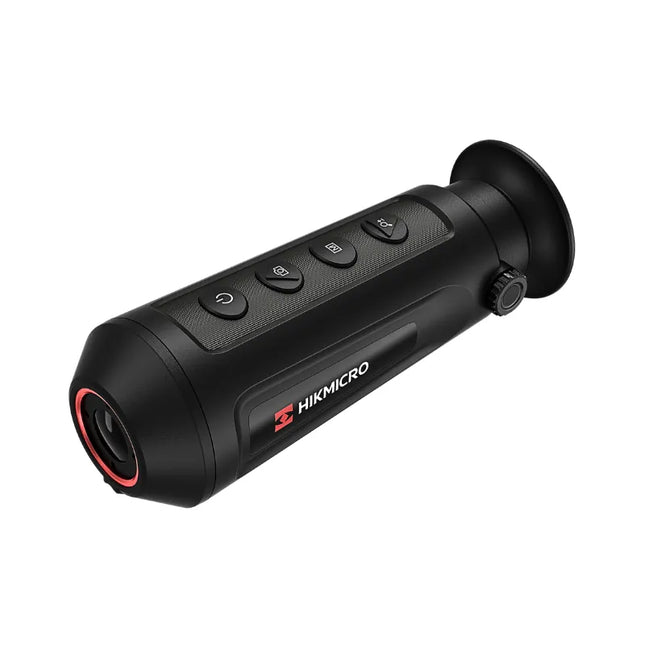

The HIKMICRO LYNX S LE15S Thermal Monocular is equipped with a 256 × 192 infrared detector and an 800 × 600 OLED display. It supports functions of observation, distance measurement, Wi-Fi hot spot and so on. The high-sensitivity built-in thermal detector provides you with a clear view even in total darkness.
The monocular is mainly applied to scenarios such as hunting, hiking, law enforcement and search and rescue.
Thermal Module
Image Sensor
VOx Uncooled Focal Plane Arrays
Max. Resolution
256 × 192
Frame Rate
50 Hz
Pixel Interval
12 μm
Response Waveband
8 μm to 14 μm
NETD
Less than 35 mK (@25°C), F# = 1.0
Lens (Focal Length)
15 mm, F1.0
Detection Range
750 m
Focus Mode
Focus Free
Min. Focusing Distance
10 m
Magnification
2.2× to 17.6× (8×)
Field of View(H × V),
11.7° × 8.8° / 20.5 m × 15.4 m
Degrees / m @100 m
Image Display
Display
800 × 600, 0.32-inch, OLED
Palettes
Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode
Auto, Manual, External Correction
Exit Pupil
20 mm
Eye Relief
6 mm
Diopter (Range)
-5D to +4D

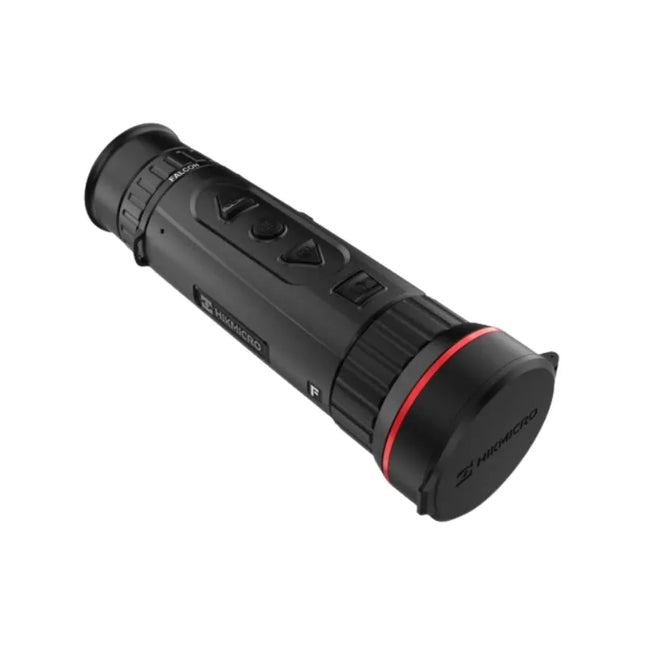

The HIKMICRO Falcon FH25 is equipped with a highly sensitive detector with a resolution of 384 × 288 (12μm technology) and an OLED display of 1024 × 768 pixels.
The built-in sensor with a sensitivity of 20mk and the completely new developed image optimisation software Image Pro offers you a perfectly clear image with an impressive detail resolution even in complete darkness – even under the most demanding weather conditions with only minimal temperature differences between thermal object and environment.
This allows you to visualise even the smallest details, such as branches or leaves but also physical features needed for accurate targeting.
STRATEGIC LENS SIZEThe FH25 has an ideal 25mm lens size to allow for slightly higher base magnification, but still includes an impressive, wider 10.5° x 7.9° field of view which allows the user a more effective scanning experience.
ADVANCED IMAGE SENSORThe highly sensitive 384×288 12 μm Vox image sensor offers high quality image performance with more details. With larger magnification, the detection range of a 1.7 m target can reach up to 1200m.
HIGH 20mk THERMAL SENSITIVITYThe Falcon FH25 comes with high, 20mK thermal sensitivity ensuring perfectly detailed recognition even in the most challenging weather conditions. This is especially noticeable when the target and background have aand what minimal temperature difference.
HikMicro Falcon FQ35 handheld thermal monocular is equipped with a 640x512 detector and a 1024 x 768 display. It supports functions of observation, hotspot, and more. The high-sensitivity thermal detetctor provides you with a clear view even in total darkness. The monocular can be used for search and rescue, hiking, travel, wildlife observation and hunting etc.
The HikMicro Falcon FQ35 Hand Held Thermal Imager features our highest specification thermal sensor, a 640x512 12 micron thermal core with sub 20mk NETD sensitivity to deliver incredible performance even in difficult weather conditions with a detection range of up to 1800m, the HikMicro Falcon FQ35 features advanced thermal performance, 1.8x optical mag with up to 4x zoom, with picture in picture, colour palettes, video recording, wifi and more.
Boasting an industry leading SUB 20 NETD sensor paired to an exceptional F0.9 lens system the Falcon delivers the highest performance components available on the commercial market. This translates into an exceptionally high quality image even in the harshest of weather conditions.
The highly thermally sensitive 640x512px 12um SUB 20 NETD sensor ensures perfect detail recognition. Capable of detecting the smallest details like animal hair, subtle physical characteristics and information from the surroundings like branches and leaves – building you a reliable picture of your target and its surroundings.
Perfect for wildlife observation and as a hand held thermal imager for hunting, the new HikMicro Falcon FQ35 thermal imaging camera features a high specification F35/0.9 lens to deliver crystal clear thermal viewing via a 1024x768 HD display.
Specifications
Details
Image Sensor
Vox Uncooled Focal Plane Arrays
Resolution
384 x 288
Frame Rate
50Hz
Pixel Interval
12um
Response Waveband
8um to 14um
NETD
Less than 20mK (@25ºC), F# = 1.0
Focal Length
35mm
Aperture
F1.0
Min. Focusing distance
3.5m
Digital Zoom
1x, 2x, 4x, 8x
Optical Magnification
2.6
Field of View (HxV). Degrees/M @100m
7.53º x 5.65º / 13.2m x 9.9m
Detection Range
1800m
Monitor
0.39 inch, OLED, 1024 x 768
Palettes
Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction)
Auto, Manual, External Correction
Storage
Built-In memory module (64GB)
Record Video
Yes
Capture Snapshot
Yes
Standby Mode
Yes
