The HIKMICRO Lynx LC06S thermal monocular is equipped with a 160×120 infrared detector and a 800 x 600 OLED display. The Lynx series boasts features such as on-board recording, WiFi streaming, a HD OLED display screen. The HikMicro Lynx LC06S is ideal for an entry level thermal monocular due to its affordable price and high quality. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The HikMicro Lynx LC06S is the perfect tool for law enforcement, border patrol, security and hunting.
\
Thermal Module
Image Sensor
VOx Uncooled Focal Plane Arrays
Max. Resolution
160 × 120
Frame Rate
50 Hz
Pixel Interval
17 μm
Response Waveband
8 μm to 14 μm
NETD
Less than 35 mK (@25°C, F# = 1.1)
Lens (Focal Length)
6.2 mm, F1.1
Detection Range
250m
Focus Mode
Focus Free
Min. Focusing Distance
1m
Magnification
1.0× to 4.0× (4×)
Field of View(H × V),
24.7° × 18.7° / 43.8 m × 32.9 m
Degrees / m @100 m
Image Display
Display
800 × 600, 0.32-inch, OLED
Palettes
Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction)
Auto, Manual, External Correction
Mode
Exit Pupil
20 mm
Eye Relief
6 mm
HikMicro Falcon FQ35 handheld thermal monocular is equipped with a 640x512 detector and a 1024 x 768 display. It supports functions of observation, hotspot, and more. The high-sensitivity thermal detetctor provides you with a clear view even in total darkness. The monocular can be used for search and rescue, hiking, travel, wildlife observation and hunting etc.
The HikMicro Falcon FQ35 Hand Held Thermal Imager features our highest specification thermal sensor, a 640x512 12 micron thermal core with sub 20mk NETD sensitivity to deliver incredible performance even in difficult weather conditions with a detection range of up to 1800m, the HikMicro Falcon FQ35 features advanced thermal performance, 1.8x optical mag with up to 4x zoom, with picture in picture, colour palettes, video recording, wifi and more.
Boasting an industry leading SUB 20 NETD sensor paired to an exceptional F0.9 lens system the Falcon delivers the highest performance components available on the commercial market. This translates into an exceptionally high quality image even in the harshest of weather conditions.
The highly thermally sensitive 640x512px 12um SUB 20 NETD sensor ensures perfect detail recognition. Capable of detecting the smallest details like animal hair, subtle physical characteristics and information from the surroundings like branches and leaves – building you a reliable picture of your target and its surroundings.
Perfect for wildlife observation and as a hand held thermal imager for hunting, the new HikMicro Falcon FQ35 thermal imaging camera features a high specification F35/0.9 lens to deliver crystal clear thermal viewing via a 1024x768 HD display.
Specifications
Details
Image Sensor
Vox Uncooled Focal Plane Arrays
Resolution
384 x 288
Frame Rate
50Hz
Pixel Interval
12um
Response Waveband
8um to 14um
NETD
Less than 20mK (@25ºC), F# = 1.0
Focal Length
35mm
Aperture
F1.0
Min. Focusing distance
3.5m
Digital Zoom
1x, 2x, 4x, 8x
Optical Magnification
2.6
Field of View (HxV). Degrees/M @100m
7.53º x 5.65º / 13.2m x 9.9m
Detection Range
1800m
Monitor
0.39 inch, OLED, 1024 x 768
Palettes
Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction)
Auto, Manual, External Correction
Storage
Built-In memory module (64GB)
Record Video
Yes
Capture Snapshot
Yes
Standby Mode
Yes
The HIKMICRO Falcon FQ25 25mm Thermal Imaging Monocular is a high-quality device designed for wildlife observation, hunting, and other outdoor activities.
Key features:
Thermal Sensor: Equipped with a 640 × 512 infrared detector, providing clear thermal images even in total darkness.
Display: Features a 1024 × 768 OLED display for high-resolution viewing.
Lens: The 25mm lens offers an improved field of view, making it ideal for spotting wildlife and conducting ecological studies.
Design: Ergonomically designed with a replaceable high-capacity battery, ensuring ease of use and uninterrupted observation.
Aperture: The large f/0.9 aperture lens delivers unparalleled clarity and detail in all weather conditions.
The HIKMICRO Lynx 2.0 LH15 comes with a fixed focus lens system making this model the perfect choice for people wanting a quick pick up and spot thermal monocular, where you do not have to adjust the focus of the device between different ranges. The HIKMICRO Lynx 15mm offers a wide field of view due its 15mm focal length and low base magnification this combination has helped it gain popularity as the choice for woodland deer stalkers allowing them to scan woodlands quickly and efficiently. The new LYNX 2.0 series of thermal imagers all come with HIKMICRO's latest highly sensitive thermal sensor which is a 384x288 12um <20mk which helps to provide a super image despite its entry level price point.
Is the HIKMICRO Lynx LE10 worth it over the Lynx 6mm? The simple answer is yes! The larger 256x192 12um 35mK thermal sensor provides a superb performance out to 100-150m making it a perfect choice for locating and identifying rabbits, birds and squirrels. The super compact HIKMICRO LE10's enhanced performance makes it a perfect choice for rat controllers who are looking to improve their identification ability when scanning farm yards and barns, the larger sensor allows the thermal to pick out higher levels of detail when scanning an area quickly. Like every HIKMICRO product you have the ability stream your vision straight from the thermal to a smart phone or capture the footage and access it within seconds on your phone for easing sharing on social media.

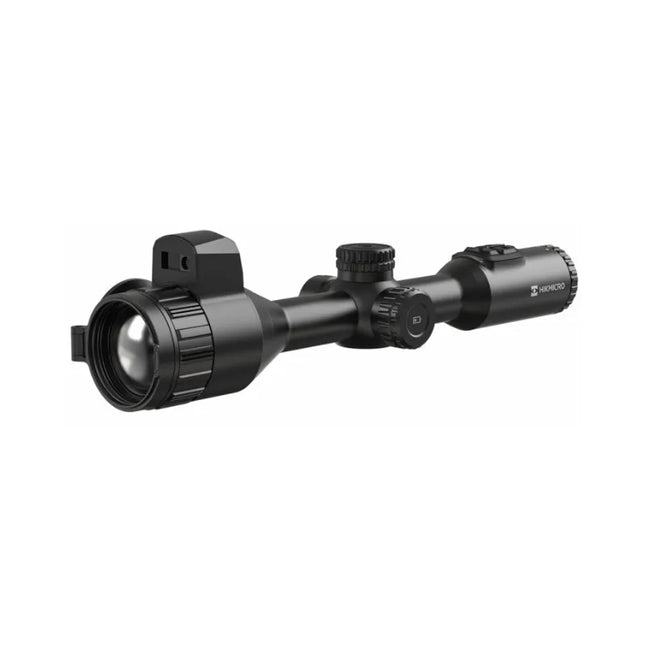

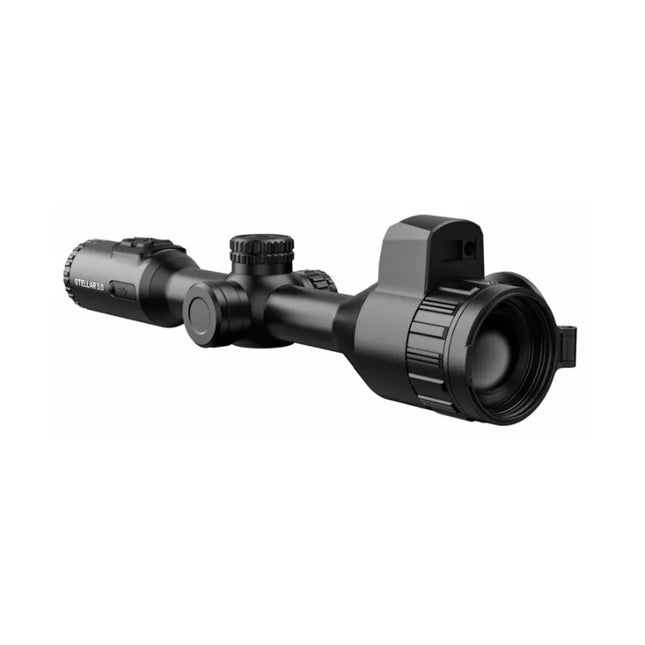

The HIKMICRO Stellar 3.0 SQ50L is a high-end thermal imaging scope designed for precision and clarity in the field. Here are some of its key features:
Thermal Detector: 640×512 resolution @12μm, providing high sensitivity with NETD <15mK.
Lens: 50 mm, F1.0 with a detection range up to 2600 meters.
Display: 2560×2560 resolution 1.03-inch OLED, ensuring detailed and clear images.
Laser Rangefinder (LRF): Built-in, with a range up to 1000 meters and ballistic calculation.
Battery Life: 9 hours of continuous operation with rechargeable internal and external batteries.
Durability: High shock resistance up to 1000 g/0.4 MS, suitable for larger calibers.
This scope is ideal for field and forest hunting, providing enhanced image clarity and aiding in target identification even in low-light conditions.
The HIKMICRO Condor CQ35L is a thermal monocular designed for outdoor enthusiasts, hunters, and security personnel.
High Image Clarity:
The CQ35L features a 384 detector, ensuring clear thermal images.
It boasts a 35mm f/1.0 lens, providing powerful magnification.
The high sensitivity (NETD < 20mK) thermal detector allows easy identification of small details in various weather and light conditions.
Distance Measurement:
Safety is crucial when hunting. The integrated laser rangefinder in the CQ35L allows you to measure distances up to 1,000m with an accuracy of ±1 meter in different scenarios.
Ergonomic Design:
The compact and easy-to-grasp shape design ensures comfortable operation for both left- and right-handed users.
Durability and Reliability:
Constructed with a magnesium alloy, the CQ35L is both durable and lightweight.
It operates in a temperature range of -30°C to +55°C, making it reliable in diverse conditions.
Impressive Detail Recognition:
The sub-20mK NETD rating ensures detailed images in all weather conditions, whether hot, cold, rainy, or foggy.
Detection Range:
The CQ35L offers a detection range of up to 1,800m for man-sized targets.
In summary, the HIKMICRO Condor CQ35L is a versatile thermal monocular that combines clarity, precision, and durability, making it an excellent choice for outdoor activities and security applications. 🌟🔍🔭
The HIKMICRO TH35P V2.0 Thunder 35mm Thermal Imager is an advanced thermal imaging device crafted by HIKMICRO, a renowned leader in the industry. Featuring a 35mm objective lens and a high-resolution 388x284 sensor, this thermal imager delivers exceptional image clarity and detail. With a remarkable 12-micron pixel pitch and an impressive thermal sensitivity of less than 20mK, the TH35P V2.0 excels in detecting subtle temperature variations, making it a versatile tool for a wide range of applications.
Designed for optimal performance, this thermal imager is equipped with user-friendly controls and a compact form factor, providing convenience for both professionals and enthusiasts. Whether used in surveillance, wildlife observation, or security applications, the TH35P V2.0 Thunder Thermal Imager offers reliable and efficient thermal detection capabilities. Its ability to operate effectively in challenging conditions makes it an invaluable asset for those seeking precision and reliability in thermal imaging technology.
The HIKMICRO TQ35 V2.0 Thunder 50mm Thermal Imager is an advanced imaging device that exemplifies cutting-edge thermal technology.
Manufactured by HIKMICRO, a renowned leader in the field, the TQ35 V2.0 combines high-resolution imaging with a 640x512 sensor and an ultra-sensitive 12-micron pixel pitch, achieving impressive image quality.
This thermal imager is equipped with a 50mm objective lens, providing enhanced clarity and a broad field of view for detailed observations. With a remarkable thermal sensitivity of less than 20mK, it excels in detecting subtle temperature differences, making it an excellent tool for a wide range of applications, including surveillance, security, and search and rescue operations.
The Thunder 50mm Thermal Imager is designed for user convenience, featuring a compact build and user-friendly controls, making it an invaluable asset for professionals and enthusiasts seeking superior thermal imaging performance.
The HIKMICRO Thunder Zoom TH50Z 2.0 Thermal Scope is a cutting-edge imaging device designed for superior thermal detection and observation.
Engineered by HIKMICRO, a leading innovator in thermal imaging technology, the TH50Z 2.0 boasts advanced features that elevate its performance in various scenarios.
With an impressive 50mm objective lens and 2x to 8x magnification capabilities, this thermal scope provides exceptional clarity and zoom capabilities for precise target identification over short to medium distances. Its high-resolution thermal sensor ensures reliable detection even in challenging low-light conditions, making it a versatile tool for hunting, surveillance, and outdoor activities.
The Thunder Zoom TH50Z 2.0 also features a user-friendly interface, durable construction, and a compact design, making it an ideal choice for enthusiasts and professionals seeking top-tier thermal imaging solutions.
The HIKMICRO Falcon FQ50 50mm Thermal Imager is a cutting-edge monocular device designed for high-performance thermal imaging. Crafted by HIKMICRO, a leading innovator in the field, the FQ50 boasts a 50mm objective lens paired with a high-resolution 640x512 sensor, delivering superior image quality and clarity. With an ultra-sensitive 12-micron pixel pitch and an impressive thermal sensitivity of less than 20mK, this thermal imager excels in detecting subtle temperature differences, making it an ideal tool for various applications.
The monocular design of the Falcon FQ50 ensures portability and ease of use, allowing for one-handed operation. Whether used for surveillance, outdoor activities, or search and rescue missions, this thermal imager provides reliable thermal detection capabilities in a compact form factor. Its advanced features, user-friendly interface, and robust construction make the HIKMICRO Falcon FQ50 an excellent choice for professionals and enthusiasts seeking top-tier thermal imaging solutions.
🔥 Unleash the Power of the Night with HIKMICRO TH25 V2.0 Thunder 2.0 25mm Thermal Optic! 🔥Are you ready to experience a new level of clarity and precision in your nighttime adventures? Say hello to the HIKMICRO TH25 V2.0 Thunder 2.0 Thermal Optic – your ultimate companion for unparalleled visibility, day or night, rain or shine.🔍 Why Choose HIKMICRO TH25 V2.0 Thunder 2.0 Thermal Optic? 🔍✨ Cutting-Edge Thermal Imaging: The Thunder 2.0 utilizes advanced thermal imaging technology, revealing hidden details in complete darkness. Whether you're hunting, exploring, or conducting surveillance, experience unmatched clarity even in the pitch-black night.🔥 25mm Lens for Optimal Performance: The 25mm lens captures more thermal radiation, offering a wider field of view and sharper images. Spot targets at longer distances with precision, ensuring you never miss a moment.🎯 Multiple Imaging Modes: Switch between various color palettes and imaging modes to adapt to different environments. Enhance contrast, highlight heat signatures, and customize your viewing experience to your preferences.🌧️ All-Weather Reliability: Built to withstand harsh weather conditions, the Thunder 2.0 is waterproof, fog-proof, and dustproof. Rain, fog, or challenging terrains won't hinder your vision, ensuring you stay on top of your game.🎥 Built-In Video Recording: Capture your exciting moments in the field with the built-in video recording feature. Document your experiences and share your adventures with friends and fellow enthusiasts.🔋 Long Battery Life: Enjoy extended hours of exploration with the Thunder 2.0's impressive battery life. Focus on your activities without worrying about running out of power, ensuring uninterrupted nighttime adventures.🔍 How to Elevate Your Nighttime Adventures:1. Mount the HIKMICRO TH25 V2.0 Thunder 2.0 Thermal Optic onto your rifle or preferred device.2. Experience the crisp, clear thermal imagery, revealing hidden targets and wildlife even in complete darkness.3. Explore the great outdoors, hunt, or conduct surveillance with confidence, knowing you have the ultimate night vision tool at your disposal.4. Record your adventures, capture stunning visuals, and share your experiences with fellow enthusiasts.🔥 Elevate Your Night Vision Experience! 🔥Enhance your nighttime adventures, hunting expeditions, and surveillance activities with the HIKMICRO TH25 V2.0 Thunder 2.0 Thermal Optic. Experience the power of thermal imaging, revealing the unseen and transforming your nocturnal pursuits.Order your HIKMICRO TH25 V2.0 Thunder 2.0 Thermal Optic today and embark on a new era of nighttime exploration and precision.🔍 Clarity, Precision, and Adventure – HIKMICRO TH25 V2.0 Thunder 2.0 Thermal Optic: Your Gateway to the Night! 🔍🌌
The HIKMICRO Falcon FH25 is equipped with a highly sensitive detector with a resolution of 384 × 288 (12μm technology) and an OLED display of 1024 × 768 pixels.
The built-in sensor with a sensitivity of 20mk and the completely new developed image optimisation software Image Pro offers you a perfectly clear image with an impressive detail resolution even in complete darkness – even under the most demanding weather conditions with only minimal temperature differences between thermal object and environment.
This allows you to visualise even the smallest details, such as branches or leaves but also physical features needed for accurate targeting.
STRATEGIC LENS SIZEThe FH25 has an ideal 25mm lens size to allow for slightly higher base magnification, but still includes an impressive, wider 10.5° x 7.9° field of view which allows the user a more effective scanning experience.
ADVANCED IMAGE SENSORThe highly sensitive 384×288 12 μm Vox image sensor offers high quality image performance with more details. With larger magnification, the detection range of a 1.7 m target can reach up to 1200m.
HIGH 20mk THERMAL SENSITIVITYThe Falcon FH25 comes with high, 20mK thermal sensitivity ensuring perfectly detailed recognition even in the most challenging weather conditions. This is especially noticeable when the target and background have aand what minimal temperature difference.
The HIKMICRO Falcon FH35 is equipped with a highly sensitive detector with a resolution of 384 × 288 (12μm technology) and an OLED display of 1024 × 768 pixels.
The built-in sensor with a sensitivity of 20mk and the completely new developed image optimisation software Image Pro offers you a perfectly clear image with an impressive detail resolution even in complete darkness – even under the most demanding weather conditions with only minimal temperature differences between thermal object and environment.
This allows you to visualise even the smallest details, such as branches or leaves but also physical features needed for accurate targeting.
POPULAR 35mm LENSThe HIKMICRO Falcon FH35 Thermal Monocular comes with a 35mm lens and a higher 3.03x base magnification, allowing the unit to have significantly long detection distance than the FH25, and with that, a longer identification distance.
GREAT BUILD FOR EASY USABILITYThe Falcon has lightweight but durable magnesium housing, covered with a thick rubber armour for better grip. In addition to the high-quality housing, HIKMICRO also scores with intuitive operation – true to the motto “form follows function”, all functions can be operated silently using just three rubberised buttons.
LONGER BATTERY LIFEThe new HIKMICRO Falcon series relies on replaceable 18650 batteries and has thus met the wishes of most users. Thanks to two 18650 batteries and a charger included, the Falcon FH35 can be used for up to 14 hours of continuous operation.
The HIKMICRO STELLAR SH35 Thermal Scope has a 384×288 thermal detector and 1024×768 OLED display, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The traditional-style 35mm Tube meets the needs of professional hunters who value traditions and seek technological superiority, ensure an extreme detection range of up to 1800 meters.
Key Features:– 384×288 Thermal resolution, high sensitivity detector, NED <35mK (25ºC, F# = 1.0)– Supports audio recording– Supports recoil-activation recording– Supports video recording and snapshot, built-in EMMC (64GB)– 1024×768 resolution 0.39-inch OLED display– Observation distance up to 1800m
30mm RING MOUNTINGHIKMICRO put this high-tech system in a traditional looking exterior by retaining the well-known rifle scope design, this enables users who prefer this look to still utilise the outstanding features of this thermal imaging rifle scope and also keep using the conventional mounting system. With a slick new-aged look, The HIKMICRO Stellar SH35 Thermal Scope can be mounted on 30mm rings, making changing from weapon to weapon a much easier and more effective process.
IP67 RATEDThe Stellar SH35 is protected by a sturdy aluminium housing with IP67 waterproof rating, which means that the scope can be submerged for up to one meter, for a maximum of 30 minutes.
EXTENDED BATTERY LIFEThe HIKMICRO Stellar SH35 Thermal Scope comes with two internal Lithium batteries and a replaceable CR123A battery, these power sources provide the user with 15 hours of use, which can be extended by replacing the CR123A battery when it’s used up.
Specification
«
‹
1
2
3
›
»
Thermal Module
Image Sensor
Uncooled Focal Plane Array
Max. Resolution
384 × 288
Frame Rate
50 Hz
Pixel Interval
12 μm
Response Waveband
8 μm to 14 μm
NETD
< 35 mK (25°C, F# = 1.0)
Lens (Focal Length)
35 mm
Detection Range
1800 m
Field of View
7.53° × 5.65°
Min. Focusing Distance
2 m
Aperture
F1.0
Magnification
2.7×
Image Display
Display
1024 × 768, 0.39 inch, OLED
Image Mode
Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode
Auto, Manual, External Correction
Exit Pupil
5 mm
Eye Relief
60 mm
Diopter (Range)
-5 D to 5 D
The HIK MicroScope Adaptor Clamp securely attaches to the separately available Clip-on Lens system and the objective bell of your optical scope, providing the mounting point to quickly attach and disconnect your Thunder thermal module.
KEY FEATURES
The 60mm adaptor is to be used with the HIKMICRO Thunder Smart Thermal Scope.
The HIK MicroScope Adaptor Clamp securely attaches to the separately available Clip-on Lens system and the objective bell of your optical scope, providing the mounting point to quickly attach and disconnect your Thunder thermal module.
KEY FEATURES
The 50mm adaptor is to be used with the HIKMICRO Thunder Smart Thermal Scope.
The HIKMICRO GRYPHON GH25L fusion thermal monocular combines the use of both visible light and invisible light to create an image that can be used in any environment. Equipped with custom 384 × 288px 12um sensor, a stunning OLED display, a 25mm lens and a laser rangefinder, the HIKMICRO Gryphon takes thermal monoculars to a whole new level.
The HIKMICRO GRYPHON sports an in built Range Finder, accurate to +/- 1m over 600m, hot tracking, 6 colour pallets including Image Fusion, and integrated with with the T-Vision app over wifi. The custom designed thermal detector featuring a NETD of less than 35mkv provides a clear image even in harsh environmental conditions such as darkness, fog, smoke, dust, rain, snow, forest, etc.
LASER RANGE FINDERRange your targets accurately with a built-in Laser Range Finder (LRF), accurate within 1 meter out to 600 meters.
THERMAL FUSION TECHNOLOGYUnlock more detail in every frame with the combination of night vision and thermal in a single unit.
3/10 YEAR WARRANTYUse your device with confidence knowing it is covered by a 3-year warranty on the body and internals of the unit, and 10 years on the sensor.
