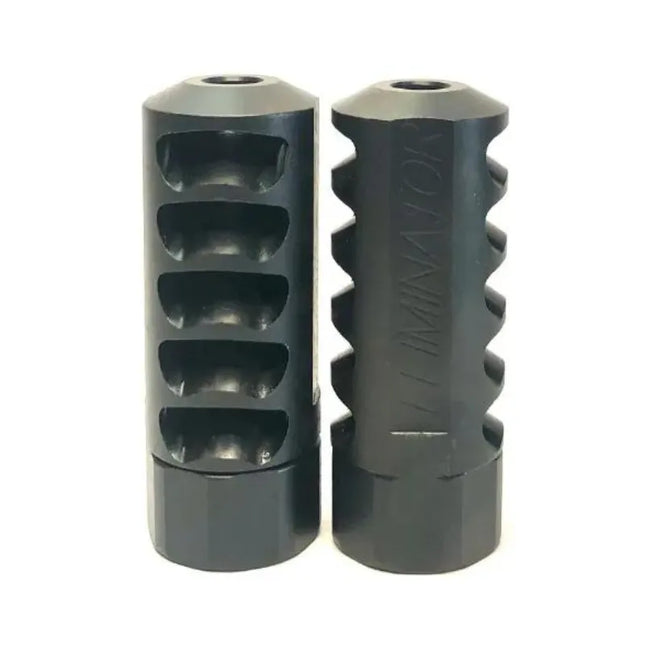

The Grizzly Eliminator Blued muzzle brake in 5/8x24 thread size is designed for rifles up to .30 caliber. It’s specifically manufactured to fit onto several rifle models, including the Ruger Precision, Tikka CTR, Tac A1, Howa Varmint, Remington Varmint, Kimber Varmint, Savage, Lithgow, and Bergara. Installation is straightforward, requiring no gunsmithing. Simply follow these steps:
Screw the locknut all the way onto the Grizzly Eliminator Muzzle Brake.
Hold the Eliminator Brake and screw it onto the muzzle thread to the shoulder, avoiding cross-threading.
Turn the muzzle brake back anti-clockwise to approximately the 11.55 position.
With a shifter, grab the flats of the brake and turn clockwise until it’s tight, ensuring alignment with the barrel.
Check that it’s still secure after firing three shots.
A handy tip: Use an alloy drink can strip between the spanner and the brake or nut flats to protect the finish. Lubricate the muzzle threads with fine gun oil before installation. The ports are angled away from the shooter to minimize discomfort while maximizing performance.
Happy shooting! 🎯🔫
Lithgow LA101 Threaded Barrel Cap – Titanium, ½×20 UNF
The Lithgow LA101 Titanium Threaded Barrel Cap is a precision-machined accessory designed to protect the muzzle threads of your LA101 rimfire rifle when a suppressor or muzzle device is not installed. Crafted from lightweight titanium, it offers corrosion resistance and a clean, flush fit for the ½×20 UNEF thread pattern.
🔧 Key Features:
Thread Pattern: ½×20 UNEF (Right-Hand) – standard for many rimfire suppressors
Material: Titanium – ultra-light, corrosion-resistant, and durable
Finish: Natural titanium or matte bead-blasted (varies by batch)
Fitment: Designed specifically for Lithgow LA101 rifles with threaded barrels
Function: Protects threads from damage, debris, and corrosion when not using a muzzle device
Weight: Negligible – won’t affect rifle balance
📦 Specifications:
Feature
Details
Thread Size
½×20 UNEF RH
Material
Titanium
Compatibility
Lithgow LA101 threaded barrels
Purpose
Thread protection
Finish
Titanium (natural or matte)
🧪 Performance Notes:
Ideal for field use or storage when a suppressor isn’t mounted
Titanium construction ensures long-term durability without adding weight
Provides a flush, factory-style appearance on the muzzle
The Bergara TP1 Muzzle Brake M18x1 (.30 Cal) is a self-timing, precision-engineered brake designed to reduce recoil and muzzle rise for .30 caliber rifles with M18x1 threaded barrels.
🔧 Key Specifications
Model: Bergara TP1
Thread Pitch: M18x1
Caliber: .30 Caliber (e.g., .308 Win, .30-06, .300 Win Mag)
Material: Steel
Finish: Nitride coating for corrosion resistance
Design: Multi-baffle, self-timing system
Recoil Reduction: Up to 30%
Mounting: No crush washer or shims required—self-aligning
🎯 Performance Highlights
Self-timing design allows easy installation and precise alignment without tools
Multi-port baffle system vents gases diagonally rearward, minimizing recoil and muzzle rise
No gas venting into line of sight—reduces dust signature and shooter disturbance
Ideal for precision shooting, hunting, and tactical applications
This brake is compatible with Bergara rifles and other platforms using M18x1 threading. Let me know if you’d like help bundling it with thread protectors, suppressor adaptors, or matching barrels.
GRIZZLY PRECISION MUZZLE BRAKE – SAUER 101 / 404 / SAKO 85 SS Recoil control meets surgical precision.
Engineered for serious hunters and long-range marksmen, the Grizzly Precision Stainless Muzzle Brake tames recoil and muzzle rise without compromising accuracy. Designed to fit factory-threaded barrels on Sauer 101, Sauer 404, and Sako 85 Stainless models, this brake suits calibres up to .338—making it ideal for magnum-class performance.
Fitment: Direct-thread for Sauer 101, 404, and Sako 85 SS
Calibre Compatibility: Up to .338 (including .308, .30-06, 7mm Rem Mag, .300 Win Mag, .338 Fed)
Material: CNC-machined stainless steel—corrosion-resistant and built for harsh field conditions
Finish: Matte bead-blasted or polished stainless (varies by vendor)
Design: Multi-port radial venting for maximum recoil reduction and minimal muzzle jump
Thread Spec: Matches factory barrel threads—no gunsmithing required
Use Case: Hunting, precision shooting, and magnum recoil management
Whether you're sending rounds downrange from a mountain blind or dialing in a cold bore zero, this brake keeps your sight picture steady and your shoulder intact.
MANAEL Jacketed Flash Hider Brake + Blast Shield
Up to .30 Cal • 1/2x28 TPI • Removable Shield • Aussie-Made
🔧 TECHNICAL SPECS
Attribute
Details
Thread
1/2x28 TPI (also available in 5/8x24, M14, M15)
Caliber Compatibility
Up to .30 cal (.223, 6.5 Creedmoor, .308)
Style
Birdcage flash hider with 4 elongated ports
Shield
Removable blast jacket with knurled grip
Material
Billet 4140 steel
Finish
Black oxide
Weight
302g total
Dimensions
Brake: 70mm x 19–29mm OD • Shield: 97mm x 33mm OD
Made In
Australia
🧠 PERFORMANCE HIGHLIGHTS
Flash Suppression Reduces visible muzzle flash — ideal for night shooting and NV optics.
Blast Redirection Jacketed shield pushes concussion forward — protects spotters and keeps your ears happy.
Modular Design Use with or without the shield depending on your setup — tool-free install with knurled grip.
Field Tough Built for Aussie terrain — from pig culling in the scrub to foxes under moonlight.
🎯 IDEAL FOR
Night hunters using thermal or NV setups
Tactical shooters needing blast control in prone or tight positions
SCSA Taipan, Lithgow LA102, Tikka, Howa, Remington, and other bolt-action platforms
🧱 Grizzly Eliminator Muzzle Brake – Stainless Steel
Model: GESM15X1P Thread Size: M15x1P Material: Stainless Steel Finish: Brushed Stainless Caliber Compatibility: Up to .30 cal Weight: 102g (3.6 oz) Length: 71.45mm (2.81") Diameter: 22.5mm (0.885") Locknut Diameter: 22.1mm (0.87") Style: Tactical Eliminator – 5-port design Application: Sauer 101/104, Sako 85, Blaser R8/R93, Merkel Helix, Mauser M12/M18, and other rifles with M15x1 threaded barrels.
🔧 Key Features:
✅ Aggressive 5-port design for maximum recoil reduction and muzzle stabilization
🔒 Includes locknut for secure timing—no crush washer or gunsmithing required
🎯 Ports angled rearward to minimize shooter discomfort and redirect blast
🧩 Fits factory-threaded barrels with M15x1 thread and shoulder ≤ 21mm OD
🛠️ Tool-free install using a small shifting spanner
🛠 Installation Guide:
Screw locknut onto brake
Thread brake onto barrel until it contacts shoulder
Back off to ~11:55 position for optimal port alignment
Tighten locknut against brake
Final torque using spanner on brake flats
Recheck tightness after 3 shots
This Eliminator brake is a powerhouse for recoil control and precision shooting.
Grizzly Eliminator Muzzle Brake – Stainless Steel
Model: GES12X28-5P Thread Size: 1/2x28 TPI Porting: 5-Port Material: Stainless Steel Finish: Polished Stainless Caliber Compatibility: Up to .30 cal Style: Tactical Eliminator Application: AR-15, bolt-action rifles, and other platforms with 1/2x28 threading
🔩 Key Features:
🔧 Aggressive 5-port design for maximum recoil reduction and muzzle control
🧱 Precision-machined stainless steel for durability and corrosion resistance
🔒 Includes locknut for secure timing and installation
🎯 Ideal for .223/5.56 and .30 cal platforms with 1/2x28 threading
🛠️ No crush washer required – easy install and alignment
📐 Dimensions & Fit:
Spec
Value
Thread
1/2x28 TPI
Port Count
5
Material
Stainless Steel
Finish
Polished
Caliber Range
Up to .30 cal
Weight
~2 oz (varies slightly)
This Eliminator brake is a top-tier choice for tactical shooters and precision marksmen looking to tame recoil and maintain rapid follow-up accuracy.
Grizzly Muzzle Brake – Stainless Steel
Model: GBS16.6M14 Thread Size: M14x1P Outer Diameter: 16.6mm (tapered end) / 18.95mm (base) Length: 62mm (2.44") Weight: 44–58g (1.55–2.04 oz) Material: Stainless Steel Finish: Polished Stainless Compatibility: Sauer 100XT, Tikka T3X (factory-threaded barrels) Caliber Range: Up to .338 cal
🔧 Key Features:
✅ Easy screw-on installation – no crush washers or gunsmithing required
✅ Perfectly aligned gas ports for balanced energy dispersion
✅ Reduces recoil and muzzle rise for faster follow-up shots
✅ Designed for factory-threaded barrels – ideal fit for Sauer 100XT and Tikka T3X
✅ Includes locknut for secure timing and fit
🛠 Installation Notes:
Align brake ports to ~11:55 position for optimal blast deflection
Use supplied tool to tighten against barrel shoulder
Recheck fit after initial firing for safety and performance
This brake is a top-tier choice for shooters looking to tame recoil and maintain accuracy on premium bolt-action platforms.
Grizzly Brake Eliminator – Stainless Steel 5/8x24
Thread Size: 5/8x24 TPI Material: Stainless Steel Finish: Polished Stainless Caliber Compatibility: Up to .30 cal Weight: 97g (3.4 oz) Length: 70.35mm (2.77") Diameter: 23mm (0.905") Lock Nut Diameter: 22.75mm (0.895")
🔧 Key Features:
✅ No gunsmithing required – installs with a spanner
✅ Ports angled back to reduce shooter discomfort
✅ 90° port orientation to minimize ground disturbance
✅ Designed for .308 standard bore – can be opened for larger calibers
✅ Locknut included for secure fit and timing adjustment
✅ Made in Australia 🇦🇺
🛠 Installation Tips:
Use a small shifting spanner and fine gun oil on threads
Align brake to 11:55 position for optimal port orientation
Tighten locknut firmly and recheck after a few shots
Optional: use a strip of aluminum can between spanner and brake to protect finish
Grizzly Muzzle Brake – Lithgow RF SA SS 1/2x28, .30 Cal
The Grizzly Muzzle Brake for Lithgow RF SA is a precision-engineered, stainless steel muzzle device designed to reduce recoil and muzzle rise for rifles chambered up to .30 caliber. With its 1/2x28 thread pitch, tool-free installation, and balanced gas dispersion, it’s a practical upgrade for shooters seeking improved control and follow-up shot speed.
Key Features:
Thread Pitch: 1/2x28 – fits compatible .30 cal barrels
No Crush Washer Needed: Installs easily with included tool
Balanced Gas Port Design: Reduces recoil and muzzle deviation
Matte Stainless Finish: Durable and corrosion-resistant
Precision Machined: Ensures perfect alignment and consistent performance
Specifications:
Feature
Details
Caliber Range
Up to .30 Caliber
Thread Size
1/2x28 TPI
Length
62 mm (2.44 in)
Diameter
18.2 mm (tapered), 18.95 mm (base)
Weight
57 g (2.01 oz)
Material
Stainless Steel
Finish
Matte
Performance and Application
Ideal for target shooters, hunters, and tactical users, this Grizzly brake offers enhanced rifle stability and reduced felt recoil without the need for timing or shims. Its compact, clean design complements the Lithgow RF SA platform while delivering real-world performance gains.
SAKO / TIKKA MUZZLE BRAKE CONICAL D16.5 M 15X1 STAINLESS
The Sako/Tikka Conical Muzzle Brake is designed to reduce recoil and improve shooting accuracy, making it an excellent addition to your rifle setup.
Features:
Precision Engineering: Specifically designed for Sako and Tikka rifles, ensuring optimal performance.
Recoil Reduction: Helps counteract recoil and barrel rise, allowing for faster follow-up shots.
Durable Construction: Made from high-quality stainless steel, providing long-lasting reliability.
Thread Compatibility: Fits M15x1 threaded barrels, making it compatible with various models.
Enhanced Shooting Experience: Porting holes allow gases to escape efficiently, improving accuracy and stability.

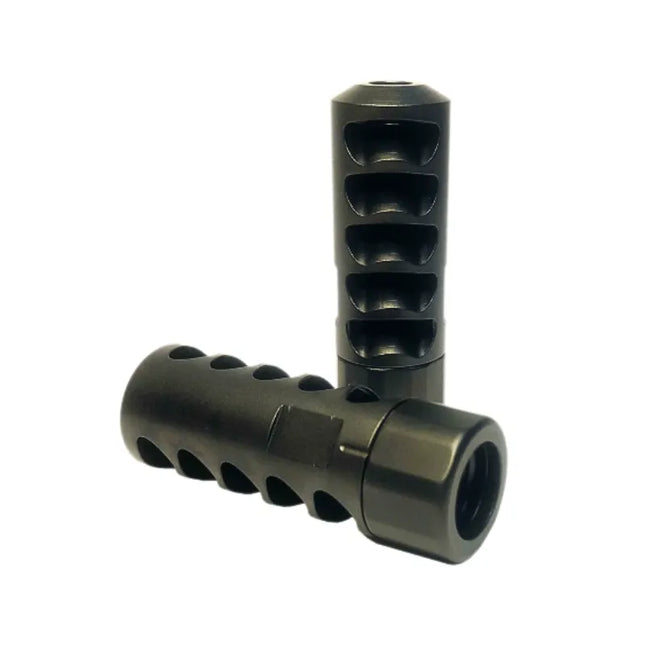

The Grizzly Brake Eliminator Blued M14x1P is a high-quality muzzle brake designed to reduce recoil and muzzle rise. Here are some key features:
Compatibility: Fits firearms with an M14x1P thread and a shoulder no larger than 21mm OD.
Caliber: Suitable for calibers up to .30 caliber.
Installation: Easy to install without gunsmithing, requiring only a small shifting spanner.
Design: Ports are angled back to minimize shooter discomfort and maximize performance.
Dimensions: 71.45mm (2.812 inches) length, 22.50mm (0.885 inches) diameter, 22.10mm (0.87 inches) lock nut diameter.
Weight: 102 grams (3.6 ounces).
Finish: Blued for durability and corrosion resistance.
This muzzle brake is perfect for hunters and shooters looking to enhance their shooting experience with reduced recoil and improved accuracy.

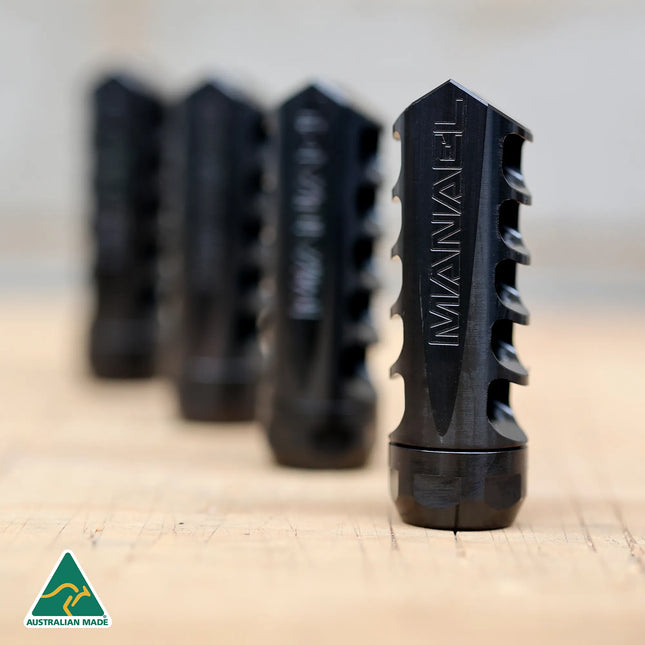

The MANAEL JST Self-Timing Muzzle Brake for .30 caliber rifles with a 5/8x24 thread is designed to reduce recoil and muzzle flip, making it ideal for precision shooting and hunting.
This Australian-made muzzle brake is compatible with various centrefire rifles, including models from Southern Cross Small Arms, Lithgow, Tikka, and more. Its sleek design minimizes snag points, keeping you agile when tracking a target.
MANAEL Gen 2 Muzzle Brake Details & Dimensions
Outer diameter: 29.8mm (barrel end tapers to 24.2mm)
Length: 91mm
Weight: 186 grams
MANAEL Gen 2 Brakes can accommodate threads between 12mm to 22mm depth (ideal 16mm - 19mm)
Self-timing lock nut
Billet machined from heavy duty 4140 cromoly
Hardy Black Oxide finish
5 port venting power
Pros:
Superior Recoil Management: The brake vents recoil energy through five rear-facing ports, significantly reducing recoil and muzzle flip.
Self-Timing Installation: No gunsmith needed! The quick lock-ring design allows for easy, tool-free installation.
Pulse Control: The design ensures the rifle movement under recoil matches the projectile impact time, helping shooters to sight their impacts accurately.
Durability: Made from billet machined 4140 chromoly and finished in Black Oxide Nitride for enhanced durability.
Versatility: Compatible with centerfire and rimfire rifles up to 30 calibers.
Aussie Tough: Endlessly tested to ensure it can handle anything you throw at it

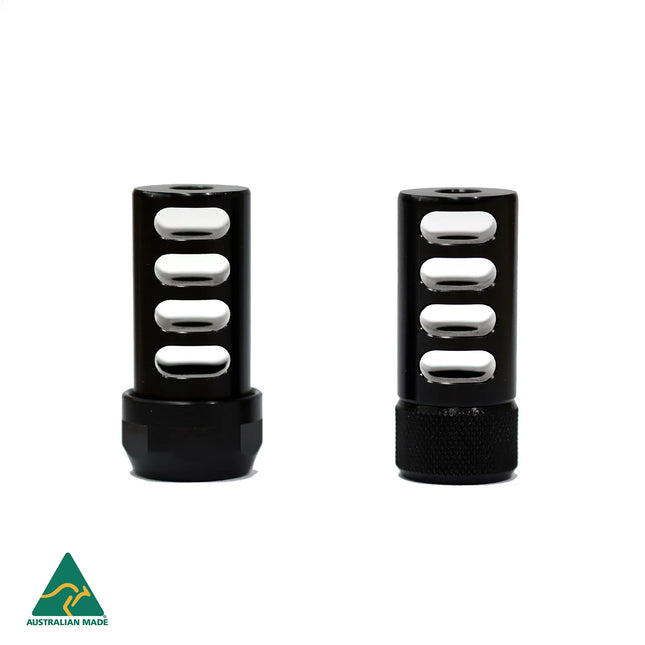

The MANAEL Ultralite Hunter Self-Timing Muzzle Brake is designed for calibers up to .30 and features a knurled lock nut style with a 5/8x24 muzzle thread. Here are some key details:
Lightweight Design: Weighs around 42 grams, making it ideal for hunters who need to minimize weight.
Self-Timing Mechanism: Easy to install without the need for gunsmithing. Simply screw it onto your thread, align the ports, and lock it in place with the knurled lock nut.
Recoil Management: Helps manage recoil effectively, making it easier to stay on target for follow-up shots.
Durability: Made from high-quality materials and finished in Black Oxide Nitride for durability.
This muzzle brake is perfect for hunters who want to reduce recoil without adding significant weight to their rifles.
Designed for calibres up to .30cal. These brakes are an easy, convenient screw on design that do not require any crush washers or special tools. Just screw the muzzle brake on all the way to the shoulder of your barrel and then fasten tight with the tool provided. Due to the perfectly aligned machined gas ports, this design disperses energy evenly around the brake, creating greater balance thus eliminating deviation from the muzzle blast.
