Pulsar Thermal Zeroing Target w/Heat Pad - 10pk. Pulsar Thermal Zeroing Targets are the perfect solution for simple and precise zeroing of thermal imaging riflescopes. Pack contains 10 30x30cm paper targets and 10 40mm carbon activated adhesive heating pads.
The adhesive heating pads will remain hot for 10-20 minutes on cold surfaces depending on weather conditions.
Ingredients: iron powder, activated carbon, vermiculite, salt, resin, water.
To use these heated targets, follow the steps below:
The heat pack is air-activated, do not open the pad packaging until you are ready to use it.
Open the packaging and take out the heat pad.
Do not cut or damage the heat pad while taking it out.
Remove the paper strip from the back side of the heat pad to expose the adhesive surface.
Stick the heat pad with the adhesive side to the center of the paper target marked with circle.
There is no need to shake the heat pad, it will warm itself up in 3-5 minutes.
Attach the paper target to the desired location.
Aim at the heated pad with a thermal imaging scope mounted on the firearm and optimize thermal view, so that thermal pad is clearly visible.
Perform zeroing procedure as described in the user manual of your thermal imaging device.
With the help of the round shape and small diameter of the pad, deviations of point of impact can be eliminated in just a few shots.
The Pulsar APS-V battery charger is designed to charge APS 2, APS 3, and APS 5 batteries. These batteries are commonly used to power various Pulsar devices, including:
Axion thermal imaging monoculars
Thermion thermal imaging riflescopes
Proton thermal imaging attachments
Digex digital riflescopes
Digex-X and Digex-XS infrared illuminators.
The APS-V charger features two slots:
One slot is specifically designed for charging APS5 batteries (with a capacity of 4.9 Ah).
The other slot is compatible with APS3 batteries (3.2 Ah) and APS2 batteries (2 Ah).
Additionally, the APS-V charger uses a standard USB-C interface for fast power delivery. So, if you own any of the mentioned Pulsar devices, the APS-V battery charger is a versatile and convenient solution for keeping your batteries charged and ready for action!
The Pulsar APS Battery Charger is designed specifically for charging APS 2 and APS 3 battery packs.
Compatibility:
The APS Battery Charger is compatible with both APS 2 and APS 3 battery packs.
APS 2 and APS 3 batteries are commonly used in various Pulsar devices, including thermal imaging monoculars, riflescopes, and attachments.
Quick Locking Connection:
The charging base features a secure and quick locking connection mechanism.
This prevents the batteries from accidentally falling off during the charging process.
LED Charge Indication:
The charger has LED indicators that show the charge status of the batteries.
You’ll know when your batteries are fully charged based on these indicators.
Compact and Lightweight:
The APS Battery Charger is designed to be portable and easy to carry.
It’s a convenient accessory for outdoor activities like hunting or night vision use.
If you’re looking for a reliable way to keep your APS 2 and APS 3 batteries charged, the Pulsar APS Battery Charger is a great choice! Remember to always follow the manufacturer’s instructions for safe and efficient charging.
The Pulsar APS 2 Battery Pack is designed to power the Thermion Thermal Riflescope for up to 5 hours on a single charge.
Battery Type: Lithium-Ion (Li-Ion)
Capacity: 2000 mAh
Compatibility: It’s not only for the Thermion but also works with Digex scopes and Digex IR illuminators. So, it enhances the operational time and convenience of these devices.

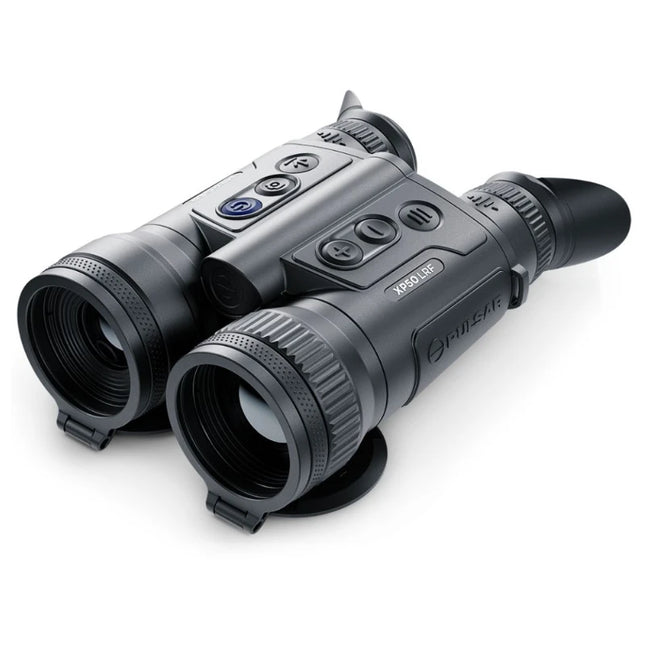

The Pulsar Merger LRF XL50 is an advanced thermal imaging binocular that offers an exceptional viewing experience. Here are some key features:
High-Definition Thermal Sensor: The new 1024x768 pixels thermal sensor provides high-definition images with rich detail. It’s perfect for identifying trophies, as you can clearly see silhouettes, anatomy, and behavioral peculiarities of animals.
Magnification Range: The 2.5-20x magnification allows improved focus and better object recognition at significant distances. Whether you need a wide field of view (14 degrees FOV) or high zoom levels, the HD sensor maintains image detail throughout the range.
Long Detection Range: The powerful objective lens combined with the professional-grade 12 µm / 1024x768 pix HD thermal imaging sensor enables detection of a standard 6-foot-tall object at a distance of up to 2,515 yards in complete darkness.
Built-In Laser Rangefinder: Measure distances accurately with the integrated laser rangefinder, which has a range of up to 1 kilometer. It provides quick and error-free assessments of the situation.
Fast Aperture Lens: The F50/1.0 germanium lens ensures high infrared transmission, resulting in clear and detailed images from the thermal sensor.
Rugged Design: The magnesium alloy housing ensures durability and reliability in various weather conditions.
Whether observing wildlife, conducting surveillance, or enjoying outdoor activities, the Pulsar Merger LRF XL50 delivers outstanding performance.
Miniature power elements used in Axion, Thermion & Digex models provide sufficient operation time and can be quickly replaced. B-Pack mini batteries can be quickly charged either with charger station or in the unit.
Super sensitive thermal imaging sensor
Thermal imaging sensor with NETD <25mK value ensures perfect detail recognition even in the most severe weather conditions when thermal contrast is low. The smallest temperature differences in observed objects can be clearly visible during heavy rainfall, dense fog or cold mornings making it easy to recognize and identify the game and its features.
Fast aperture f1.0 germanium optics
Quality fast aperture germanium optics ensures optimal heat energy transmissivity minimizing noise and improving detail of observed scene.
Classic design. Mounting on standard 30 mm rings
Classic shape of housing is ideal for all types of hunting and simplifies mounting. Designed from the ground up for ease of use, Thermion riflescopes mount to standard 30mm scope rings. No specialized tools or equipment are required.
Extreme detection range
High quality germanium optics coupled with an advanced thermal imaging sensor ensure an unprecedented detection range of up to 2.000 yards (1.800 metres) in, even in complete darkness.
User mode
Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device's memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.
Wi-Fi integration with iOS and Android devices. Stream Vision 2 application.
The built-in Wi-Fi module will connect the device with smartphones based on Android and iOS via the Stream Vision 2 mobile application. This combination provides a great opportunity, such as wireless update of the device software, transmission of images to the screen of a mobile device in real time, remote control of digital functions of the device and many others. Users registered in the application are provided with cloud storage space for photos and videos taken with a digital or thermal imaging device.
Recoil Rated up to .375 H&H, 12-Gauge and 9.3x64
Recoil rated up to 6,000 joules for flawless performance on larger calibers up to .375 H&H, 12-gauge and 9.3x64.
Long battery life. Up to 10 hours on a single charge
Thermion 2 Pro riflescopes feature a unique combined battery system consisting of two rechargeable Li-ion batteries internal and external. External rechargeable battery can be hot swapped in a matter of seconds, providing additional time during the hunt.
Variable magnification
The base magnification of Thermion 2 Pro riflescopes can be increased by means of digital zoom. Zoom changes either gradually in 2x steps or continuously offering the ideal ratio of magnification and visible field of view for specific situations.
Enhanced Wi-Fi connectivity with 2.4 / 5 GHz waveband support
In Thermion 2 PRO thermal imagers, the standard smartphone connection frequency range via a 2.4 GHz Wi-Fi channel is complemented with an effective 5 GHz range. The 5 GHz connection offers better bandwidth, a faster data transfer rate, noise immunity and improved connection stability, resulting in more productive and easier operation of the thermal imager with a smartphone.
Zeroing profiles management
Store up to 5 zeroing profiles, with 10 distance coordinates each for varying situations, in internal memory for quick rifle change-outs and on-the-fly adjustments.
A selection of 10 reticle shapes in 9 colour modes
Thermions possess a wide array of shape and color customizable reticles, including static, ballistic and scalable reticles. 9 Color options help to optimize aiming for specific conditions.
Photo and video recording
Keep the best moments of observation and share them with your friends and hunting colleagues. One touch of a button is enough to capture an interesting moment or start recording a video. 16 GB of internal memory will give the ability to record many hours of video and tens of thousands of photos.
High-precision aiming in the «Picture-in-picture» mode
The “Picture-in-picture” function enables the shooter to display a high-precision zeroing frame. Taking only 10% of the total display area, the frame shows a magnified image of the target and reticle and allows the user to closely see the image in the aiming area and have visual control of the entire field of view at the same time.
High contrast HD AMOLED display
1024x768 HD AMOLED display has enhanced color rendering, power saving, a high contrast image and quick-response, providing clear and smooth images for on-the-move observation or in cold conditions.
A selection of 8 colour palettes
A choice of 8 colour palettes lets the user observe their field of view more effectively, allowing them to optimise the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia and Violet are most suitable for long observation in the night.
Completely waterproof IPX7
With an IPX7 waterproof rating, the Thermion 2 PRO riflescopes work in conditions of high humidity and heavy rain and can withstand half an hour immersion in water to a depth of 1 meter.
SPECIFICATIONS
Sensor
384x288 pix. @ 17 µm (NETD <25 mK)
Objective lens
F50 F/1.0
Magnification, x
3-12
Field of view (HxV), degrees / m@100m
7.5/13.1
Detection range, m
1800
Sensor
Type
uncooled
Resolution, pixels
384x288
Pixel pitch, µm
17
NETD, mK
<25
Frame rate, Hz
50
Optics
Objective lens
F50 F/1.0
Magnification, x
3-12
Field of view (HxV), degrees / m @ 100 m
7.5/13.1
Eye relief, mm
50
Display
Type
AMOLED
Resolution, pixels
1024x768
Range Performance
Detection range, m
1800
Reticle
Click value, H/V, mm at 100 m
13 – 3x, 6.5 – 6x, 3.25 – 12x
Click range, H/V, mm at 100 m
2600/2600
Number of preloaded reticles
10
Video Recorder
Video / photo resolution, pixel
1024х768
Video / photo format
.mp4 / .jpg
Built-in memory, GB
16
Wi-Fi
Wireless Protocol
Wi-Fi
Wireless Standard
802.11 b/g/n/ac
Frequency, GHz
2.4 / 5 GHz
Environmental Characteristics
Degree of protection, IP code (IEC60529)
IPX7
Operating temperature range, °С
-25 – +50
Connections and Compatibilities
Max. recoil power on rifled weapon (Eo), Joules
6000
Shock resistance on the smooth-bore rifles, caliber
12
Compatible mounts
Standard 30 mm rings
Supported Application
Stream Vision 2
Power Supply
Output voltage, V
3.0–4.2
Battery type
Li-Ion Battery Pack АPS2 (external), Li-Ion Battery Pack APS3 (external)-sold separately*, Li-Ion Battery Pack APS5 (internal)
Capacity, mAh
2000 (external) + 3200 (external)* + 4900 (internal)
Operating time on battery pack (at t=22°C), h *
10
External power supply, V
5 V, 9 V (USB Type-C Power Delivery)
Weight & Size
Body material
Metal
Dimensions, mm
412x78x83
Weight, kg
0.9
The first thermal imaging riflescope with classic design and built-in laser rangefinder
The laser rangefinder is seamlessly integrated into a slim design riflescope. The rangefinder is compact, the receiver and emitter are within clearance limits of a single optical channel. The measuring range is 1800 meters – the Thermion 2 LRF XQ50 Pro provides the hunter with an accurate sense of distance at the hunting site helping to take a precise shot.
High Definition Thermal Sensor 384x288 pixel @ 17 µm
Sharp, richly contrasted thermal imaging for enhanced identification of animals, their extremities and even the smallest details, i.e. branches, leaves, grass and terrain.
Unprecedented Thermal Sensor Sensitivity
Thermal imaging sensor with NETD <25mK ensures perfect detail recognition even in the hardest weather conditions when thermal contrast is low. The smallest temperature differences will be clearly visible during the rainfall, fog or cold mornings in the most difficult conditions for thermal imaging.
Fast Aperture Lens F50/1.0
The characteristics of thermal imaging optics have a decisive influence on a thermal imager’s ability to capture even the lowest radiation levels. Ultimate detection efficiency is achieved with the fast lens of the Thermion 2 LRF XQ50 Pro (F50/1.0) thermal imager in combination with the highly sensitive thermal sensor. The Thermion 2 LRF XQ50 Pro gives users the best quality, most detailed & high-contrast, informative imagery every time, even during rain or fog, when the temperature contrast of the observed scene is minimal.
Long detection range up to 1800 m
A powerful long-distance F50/1.0 objective lens combined with a 384x288@17µm highly-sensitive thermal imaging sensor provides exceptional detection capabilities. A standard 1.8m tall object can be detected up to 1800 m away in complete darkness.
Up to 10 hours of battery life on a single charge
The Thermion 2 LRF XP50 Pro is powered with two rechargeable batteries: one built-in with a capacity of 4.9 Ah, the other replaceable with a capacity of 2 Ah. A single charge guarantees up to 10 hours of battery life, which covers the time of active use of the scope for a hunt. The embossment on the body of the replaceable battery for accurate determination of the correct position makes it possible to quickly and confidently replace a flat battery with a new one in complete darkness by touch.
High-precision ambidextrous lens focusing
Objective lens with internal focusing mechanism gives a clear and sharp image at any range. Ergonomic focusing wheels are located on the right and left sides, making focusing easy either left- or right-handed.
Clear on Target!
Variable magnification from 3x to 12x
The base magnification of Thermion 2 LRF XP50 Pro riflescopes increases by four times – 3x to 12x. The zoom changes either gradually by 2x steps or continuously to set the ideal ratio of magnification and visible field of view for specific situations.
High-precision aiming in the "Picture-in-picture" mode
The “Picture-in-picture” function enables the shooter to display a high-precision zeroing frame. Taking only 10% of the total display area, the frame shows a magnified image of the target and reticle and allows the user to closely see the image in the aiming area and have visual control of the entire field of view at the same time.
5 individual shooting profiles / 50 zeroing distances
Zeroing settings are saved in a shooting profile. The Thermion 2 LRF XQ50 Pro memory contains up to five shooting profiles for several types of weapons or cartridges. Each profile can hold up to ten zeroing distances.
A selection of 10 reticle shapes in 9 color modes
A reticle is electronically displayed in the same plane as the target. The Thermion 2 LRF XQ50 Pro memory contains ten reticle configurations and functions (direct shot type, ballistic, scalable and regular), all available in nine colors.
Rugged and Reliable
Mounting on standard 30 mm rings
The Thermion 2 LRF XP50 Pro offers visual aesthetics on any hunting weapon. From the outside the riflescope resembles a classic day sight in a 30mm housing. This form factor provides flexibility for mounting the scope on hunting weapons using proven ring solutions.
Instant Start-up
Just 3 seconds from the moment you press the power button the Thermion 2 LRF XQ50 Pro is completely ready for work.
High caliber recoil resistance: 12 gauge, 9.3x64, .375H&H
Thermion 2 LRF XQ50 Pro thermal riflescopes are high impact resistant and can be used with rifled hunting weapons with calibers of 9.3x64, .30-06, .300, .375H&H, etc., as well as with smooth-bore and pneumatic weapons.
Completely waterproof IPX7
With an IPX7 waterproof rating, the Thermion 2 LRF XQ50 Pro riflescopes work in conditions of high humidity and heavy rain and can withstand half an hour immersion in water to a depth of 1 meter.
Operating temperature range: -25 to +50 °C
Thermion 2 LRF XQ50 Pro riflescopes are designed to operate in a wide range of temperatures -25 to +50 °C. The frost-resistant AMOLED display has a standout quick response time and ensures a sharp image when observed in motion.
Image. Quality
High contrast HD AMOLED display
1024x768 HD AMOLED display has enhanced color rendering, power saving, a high contrast image and quick-response, providing clear and smooth images for on-the-move observation or in cold conditions.
A selection of 8 color palettes
A choice of 8 colour palettes lets the user observe their field of view more effectively, allowing them to optimise the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia and Violet are most suitable for long observation in the night.
Wide-angle eyepiece for comfortable observation
The wide-angle eyepiece (29.5°) and wide viewing angle of the HD quality AMOLED display provide comfortable image perception and the absence of the keyhole effect with safe removal of the exit pupil of 50mm. Observation with the Thermion 2 LRF does not strain your eyes and enables the hunter to fully concentrate on the hunting process.
Photo and video recording
Keep the best moments of observation and share them with your friends and hunting colleagues. One touch of a button is enough to capture an interesting moment or start recording a video. 16 GB of internal memory will give the ability to record many hours of video and tens of thousands of photos.
Stream Vision 2. WiFi integration with iOS and Android devices
The built-in WiFi module will connect the device with smartphones based on Android and iOS via the Stream Vision 2 mobile application. This combination provides a great opportunity, such as wireless update of the device software, transmission of images to the screen of a mobile device in real time, remote control of digital functions of the device and many others. Users registered in the application are provided with cloud storage space for photos and videos taken with a digital or thermal imaging device.
SPECIFICATIONS
Sensor
384x288 @ 17 µm (NETD <25 mK)
Objective lens
F50 /1.0
Magnification, x
3 – 12
Field of view (HxV), degrees / m@100m
7.5x5.6 / 13.1x9.8
Detection range, m
1800
Sensor
Type
uncooled
Resolution, pixels
384x288
Pixel pitch, µm
17
NETD, mK
< 25
Frame rate, Hz
50
Optics
Objective lens
F50 / 1.0
Magnification, x
3 – 12
Field of view (HxV), degrees / m @ 100 m
7.5x5.6 / 13.1x9.8
Eye relief, mm
50
Display
Type
AMOLED
Resolution, pixels
1024х768
Range Performance
Detection range, m
1800
Laser Rangefinder
Safety class for laser equipment according to IEC 60825-1:2014
1
Wavelength, nm
905
Max. measuring range, m
800
Measurement accuracy, m
± 1
Reticle
Click value, H/V, mm at 100 m
13 – 3х, 6.5 – 6х, 3.25 – 12х
Click range, H/V, mm at 100 m
2600 / 2600
Number of preloaded reticles
10
Video Recorder
Video / photo resolution, pixel
1024x768
Video / photo format
.mp4 / .jpg
Built-in memory, GB
16
Wi-Fi
Wireless Protocol
Wi-Fi
Wireless Standard
IEEE 802.11 b/g/n/ac
Frequency, GHz
2.4 / 5
Environmental Characteristics
Degree of protection, IP code (IEC60529)
IPX7
Operating temperature range, °С
-25 – +50
Connections and Compatibilities
Max. recoil power on rifled weapon (Eo), Joules
6000
Shock resistance on the smooth-bore rifles, caliber
12
Compatible mounts
Standard 30 mm rings
Supported Application
Stream Vision 2
Power Supply
Output voltage, V
3.7
Battery type
Dual Li-Ion B-Pack Mini Power System: 2 A·h Changeable Battery (external) / 4.9 A·h Battery (internal)
Capacity, mAh
2000 (external) + 4900 (internal)
Operating time on battery pack (at t=22°C), h *
10
External power supply, V
5 V, 9 V (USB Type-C Power Delivery)
Weight & Size
Body material
Aluminum alloy
Dimensions, mm
420x78.5x94.5
Weight, kg
0.97
Description The first thermal imaging riflescope with classic design and built-in laser rangefinder The laser rangefinder is seamlessly integrated into a slim design riflescope. The rangefinder is compact, the receiver and emitter are within clearance limits of a single optical channel. The measuring range is 800 meters – the Thermion 2 LRF XP50 Pro provides the hunter with an accurate sense of distance at the hunting site helping to take a precise shot. High Definition Thermal Sensor 640x480 pixel @ 17 µm Sharp, richly contrasted thermal imaging for enhanced identification of animals, their extremities and even the smallest details, i.e. branches, leaves, grass and terrain. Unprecedented Thermal Sensor Sensitivity Thermal imaging sensor with NETD <25mK ensures perfect detail recognition even in the hardest weather conditions when thermal contrast is low. The smallest temperature differences will be clearly visible during the rainfall, fog or cold mornings in the most difficult conditions for thermal imaging. Fast Aperture Lens F50/1.0 The characteristics of thermal imaging optics have a decisive influence on a thermal imager’s ability to capture even the lowest radiation levels. Ultimate detection efficiency is achieved with the fast lens of the Thermion 2 LRF XP50 Pro (F50/1.0) thermal imager in combination with the highly sensitive thermal sensor. The Thermion 2 LRF XP50 Pro gives users the best quality, most detailed & high-contrast, informative imagery every time, even during rain or fog, when the temperature contrast of the observed scene is minimal. Long detection range up to 1800 m A powerful long-distance F50/1.0 objective lens combined with a 640x480@17µm highly-sensitive thermal imaging sensor provides exceptional detection capabilities. A standard 1.8m tall object can be detected up to 1800 m away in complete darkness. Up to 10 hours of battery life on a single charge The Thermion 2 LRF XP50 Pro is powered with two rechargeable batteries: one built-in with a capacity of 4.9 Ah, the other replaceable with a capacity of 2 Ah. A single charge guarantees up to 10 hours of battery life, which covers the time of active use of the scope for a hunt. The embossment on the body of the replaceable battery for accurate determination of the correct position makes it possible to quickly and confidently replace a flat battery with a new one in complete darkness by touch. High-precision ambidextrous lens focusing Objective lens with internal focusing mechanism gives a clear and sharp image at any range. Ergonomic focusing wheels are located on the right and left sides, making focusing easy either left- or right-handed.
lear on target
One-shot freeze zeroing of thermal and digital channels
One cartridge and the Freeze software function are enough to zero in both optical channels at a selected distance. After the ranging shot, the riflescope takes a photo of the target, and the thermal imaging and digital channel reticles are set at the point of impact of the bullet. The Thermion Duo DXP can be zeroed using the base magnification or the zoom, while the click value decreases in proportion to zoom – with maximum magnification the сlick value is less than 0.1 MOA. The aiming point is stable in the full magnification range.
High-precision aiming in the “Picture-in-picture” mode
The “Picture-in-Picture” function enables the shooter to display a high-precision zeroing frame. Taking only 10% of the total display area, the frame shows a magnified image of the target and reticle and allows the user to view the image close up in the aiming area and have visual control of the entire field of view at the same time. In the Thermion Duo the images from different channels can be combined on a single display, showing a thermal image in the secondary frame when using digital mode in the main frame, and vice versa. A classic function for Pulsar products, “Picture-in-Picture” is also available, when the image from one channel is simultaneously displayed in the main and additional frame.
Five individual shooting profiles / 50 zeroing distances
Zeroing settings are saved in a shooting profile. The Thermion Duo memory contains up to five shooting profiles for several types of weapons or cartridges. Each profile can hold up to ten zeroing distances.
A selection of 10 reticle shapes in nine colour modes
A reticle is electronically displayed in the same plane as the target. The Thermion Duo memory contains ten reticle configurations and functions (direct shot type, ballistic, scalable and regular), all available in nine colours.
Photo and video recording
Keep the best moments of observation and share them with your friends and hunting colleagues. One touch of a button is enough to capture an interesting moment or start recording video. The 16 GB internal memory enables recording many hours of video and tens of thousands of photos.
Stream Vision 2. Wi-Fi integration with iOS and Android devices
The built-in Wi-Fi module will connect the device with smartphones based on Android and iOS via the Stream Vision 2 mobile application. This combination provides a great opportunity, such as wireless update of the device software, transmission of images to a mobile device screen in real time, remote control digital functions and many others. Users registered in the application are provided with cloud storage space for photos and videos taken with a digital or thermal imaging device.
Improved WiFi connectivity with 2.4 / 5 GHZ waveband support
In the Thermion Duo the standard smartphone connection frequency range via a 2.4 GHz WiFi channel is complemented with an effective 5 GHz range. The 5 GHz connection offers better bandwidth, a faster data transfer rate, noise immunity and improved connection stability, resulting in more productive and easier operation of the thermal sight with a smartphone.
Easy in use
Mounting on standard 30 mm rings
The Thermion Duo offers visual aesthetics on any hunting weapon. From the outside the riflescope resembles a classic daytime sight in a 30mm housing. This form factor provides flexibility for mounting the scope on hunting weapons using proven ring solutions.
A selection of 8 colour palettes in thermal mode
A choice of eight colour palettes enables the user to observe their field of view more effectively, allowing them to optimise the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection. Rainbow and Ultramarine help increase the chances of recognition & identification. Red Monochrome, Sepia and Violet are best for extended observation at night.
High-precision ambidextrous lens focusing
Objective lens with an internal focusing mechanism gives a clear and sharp image at any range. Ergonomic focusing wheels are located on the right and left sides, making focusing easy either left- or right-handed.
Optimized equal field of view of thermal and digital channels
Magnification in each optical channel varies in the range 2 to 16 times. Magnification changes either gradually in 2x step or continuously to set the ideal ratio of magnification and visible field of view for specific scenarios. A huge advantage is that the magnification factors and fields of view of the digital and thermal imaging channels match up. This allows the hunter not to lose concentration on the observation objects when switching from channel to channel – the hunter will see the same scene, just in a different spectrum.
Instant Start-up
Just 4 seconds from the moment you press the power button the Thermion Duo is completely ready for work.
Wide-angle eyepiece for comfortable observation
Observation with the Thermion Duo does not strain your eyes and enables the hunter to fully concentrate on the hunting process. The wide-angle eyepiece (29.5°) and wide viewing angle of the HD quality AMOLED display provide comfortable image perception and the absence of the keyhole effect with safe removal of the exit pupil of 50mm.
Reliability
High calibre recoil resistance: 12 gauge, 9.3x64, .375H&H
Thermion Duo thermal riflescopes are high impact resistant and can be used with rifled hunting weapons with calibres of 9.3x64, .30-06, .300, .375H&H, etc., as well as with smooth-bore and pneumatic weapons.
6 hours of battery life on a single charge
The Thermion Duo is powered with two rechargeable batteries: one built-in with a capacity of 4.9 Ah, the other replaceable with a capacity of 2 Ah. A single charge guarantees up to 6 hours of battery life, which covers the time of active use of the scope for a hunt. The embossment on the body of the replaceable battery is designed to determine its position accurately. It enables quick and confident replacement of a flat battery in complete darkness by touch.
Completely waterproof IPX7
With an IPX7 waterproof rating, the Thermion Duo riflescopes work in conditions of high humidity and heavy rain and can withstand half an hour immersion in water to a depth of 1 meter.
Operating temperature range: -25 to +50 °C
Thermion Duo riflescopes are designed to operate in a wide range of temperatures, from -25 to +50 °C. The frost-resistant AMOLED display has a standout quick response time and ensures a sharp image when observed in motion.
Description The first thermal imaging riflescope with classic design and built-in laser rangefinder The laser rangefinder is seamlessly integrated into a slim design riflescope. The rangefinder is compact, the receiver and emitter are within clearance limits of a single optical channel. The measuring range is 800 meters – the Thermion 2 LRF XP50 Pro provides the hunter with an accurate sense of distance at the hunting site helping to take a precise shot. High Definition Thermal Sensor 640x480 pixel @ 17 µm Sharp, richly contrasted thermal imaging for enhanced identification of animals, their extremities and even the smallest details, i.e. branches, leaves, grass and terrain. Unprecedented Thermal Sensor Sensitivity Thermal imaging sensor with NETD <25mK ensures perfect detail recognition even in the hardest weather conditions when thermal contrast is low. The smallest temperature differences will be clearly visible during the rainfall, fog or cold mornings in the most difficult conditions for thermal imaging. Fast Aperture Lens F50/1.0 The characteristics of thermal imaging optics have a decisive influence on a thermal imager’s ability to capture even the lowest radiation levels. Ultimate detection efficiency is achieved with the fast lens of the Thermion 2 LRF XP50 Pro (F50/1.0) thermal imager in combination with the highly sensitive thermal sensor. The Thermion 2 LRF XP50 Pro gives users the best quality, most detailed & high-contrast, informative imagery every time, even during rain or fog, when the temperature contrast of the observed scene is minimal. Long detection range up to 1800 m A powerful long-distance F50/1.0 objective lens combined with a 640x480@17µm highly-sensitive thermal imaging sensor provides exceptional detection capabilities. A standard 1.8m tall object can be detected up to 1800 m away in complete darkness. Up to 10 hours of battery life on a single charge The Thermion 2 LRF XP50 Pro is powered with two rechargeable batteries: one built-in with a capacity of 4.9 Ah, the other replaceable with a capacity of 2 Ah. A single charge guarantees up to 10 hours of battery life, which covers the time of active use of the scope for a hunt. The embossment on the body of the replaceable battery for accurate determination of the correct position makes it possible to quickly and confidently replace a flat battery with a new one in complete darkness by touch. High-precision ambidextrous lens focusing Objective lens with internal focusing mechanism gives a clear and sharp image at any range. Ergonomic focusing wheels are located on the right and left sides, making focusing easy either left- or right-handed. Clear on Target! Variable magnification from 2x to 16x
Description DIGEX C50digitalday and night riflescope for professional hunting, pest control, and forestry. Full HD CMOS sensor with high nighttime sensitivity offers excellent image quality 24/7: full color natural looking image during the day, color image in the twilight without auxiliary infrared illuminator and bright monochrome image in the night. HD AMOLED screen ensures correct color rendering and excellent image detail. Combined battery system consisting of internal and external battery offers up to 10hours of non-stop work. Advanced set of ballistic adjustments provides all necessary features for precise aiming and shooting. Features 24/7 use Full-Colour imaging from sunset till dusk in the Colour Twilight mode Over 500 m night detection range Authentic daytime colours Up to 10 hours of battery life on a single charge Classic design. Mounting on standard 30 mm rings Wide-angle eyepiece Variable magnification 3.5-14x Photo and video recording High-precision aiming with “Picture-in-picture” mode High caliber recoil up to: .375H&H,12 gauge and 9.3x64 5 individual shooting profiles / 50 zeroing distances Remote firmware update Stream Vision 2. Wi-Fi integration with iOS and Android devices Operating temperatures from -25 to +50 °C Fully waterproof IPX SPECIFICATIONS Sensor Type FHD CMOS Resolution, pixels 1928x1088 Optics Objective lens F50/1.4 Magnification, x 3.5 – 14 Field of view (HxV), degrees / m @ 100 m 6.7x5 / 11.7x8.8 Eye relief, 50mm Display Type AMOLED Resolution, pixels 1024x768 Range Performance Detection range, 500m (with IR 940 nm ON) / 550m (with IR 850 nm ON) Reticle Click value, H/V, mm at 100 m 11 / 11 Click range, H/V, mm at 100 m 2200 / 2200 Number of preloaded reticles 10 Video Recorder Video / photo resolution, pixel 1024x768 Video / photo format .mp4 / .jpg Built-in memory, 16 GB Wi-Fi Wireless Protocol Wi-Fi Wireless Standard 802,11 b/g/n Frequency, GHz 2.4GHz Bluetooth Wireless Protocol BLE 4.2 Wireless Standard IEEE 802.15.1 Frequency, GHz 2.4 Environmental Characteristics Degree of protection, IP code (IEC60529) IP?7 Operating temperature range, -25 – +50 °? Connections and Compatibilities Max. recoil power on rifled weapon (Eo),6000 Joules Shock resistance on the smooth-bore rifles, 12 caliber Mounting brackets on weapon Standard 30 mm rings Infrared Illuminator Model - Digex-X850S IR Illuminator (79079) Emitter LED IR wavelength, 850nm (invisible) IR Optical power, 800 mW IR spot position adjustment yes Remote control Pulsar BT (optional) Supported Application Stream Vision 2 Power Supply Output voltage, V 3.0 – 4.2 Battery type Dual Li-Ion B-Pack Mini Power System: 2 A·h Changeable Battery (external) / 4.9 A·h Battery (internal) Capacity, mAh 2000 (external) + 4900 (internal) Operating time on battery pack (at t=22°C), h *10 External power supply, V 5 (USB Type C) Weight & Size Body material Aluminum alloy Dimensions, mm 408x78x83 Weight, kg 1.15
YU76547 Pulsar Thermion 2 XP50 Pro Thermal Scope
Thermal imaging sensor with NETD <25mK ensures perfect detail recognition even in the harshest weather conditions with low thermal contrast. The smallest temperature differences will be clearly visible during rainfall, in fog or cold mornings in the most difficult conditions for thermal imaging. Extreme Detection Range 1800 meters
High quality germanium optics coupled with an advanced thermal imaging sensor ensure an unprecedented detection range of up to 1800 meters in, even in complete darkness.
Fast Aperture F/1.0 Germanium Optics
Quality fast-aperture germanium optics ensure optimal heat energy transmissivity minimizing noise and improving the details of the scene observed.
Mounts on Standard 30 mm Scope Rings
Designed from the ground up for ease of use, Thermion riflescopes are mounted on standard 30mm scope rings. No specialized tools or equipment are required.
Extreme Detection Range 1800 m (2,000 Yds)
High quality germanium optics coupled with an advanced thermal imaging sensor ensure an unprecedented detection range of up to 1800 meters – even in complete darkness.
Recoil Rated up to .375 H&H, 12-Gauge and 9.3x64
Recoil rated up to 6,000 joules for flawless performance on larger calibers up to .375 H&H, 12-gauge and 9.3x64.
Rugged, Reliable All-Metal Housing
Designed for rugged reliability, Thermion riflescopes boast full, reinforced yet lightweight ?etal construction. Precision-fabrication of housing elements ensures flawless field performance.
IPX7 Waterproof Rated
IPX7 waterproof rated for protection from heavy rainfall, snow or other precipitation. The Thermion is designed to run flawlessly, even after submersion in up to 3 feet of water for up to 30 minutes.
Variable Digital Zoom
Digital zoom, up to 8x, provides improved focus and overall target recognition at significant distances.
Zeroing Profiles Management
Store up to 5 zeroing profiles, with 10 distance coordinates each for varying scenarios, in internal memory for quick rifle change-outs and on-the-fly adjustments.
Customizable Reticle Options
Wide array of color-customizable reticles, including scalable ballistic styles. Color options: black, white, red and green.
Picture-in-Picture
Picture-in-picture displays a magnified image at the top-center 10% of the overall field of view for precise shot placement.
Image Boost Technology
Image Boost technology is a proprietary combination of software algorithms which enhance image clarity and overall image detail. Applying Image Boost makes for a sharper and more detailed picture enabling better object identification capabilities.
Full-Color, HD AMOLED Display
While the Thermion’s HD AMOLED display delivers crisp, richly contrasted, vividly colored field of view, AMOLED technology ensures flawless, fluid, high-resolution imaging and power saving.
Color Palettes
Color palettes offer customized display options. While white hot and black hot are most popular, red hot, rainbow and ultramarine highlight a heat signature’s more intense hot spots. Violet, red monochrome and sepia are optimal palettes for reduced eye fatigue over long periods of observation.
Video and Still-Photo Recording
Integrated video (including recoil-activation) and still image recording in MPEG-4 and .jpg makes sharing the thermal action quick and easy. The onboard 16-GB internal memory handles recoil flawlessly and stores hours of video or thousands of photos.
Stream Vision App Supported
Using Wi-Fi and the Stream Vision App, connect the Thermion to a smartphone or tablet for use as a second display or remote control and to transfer recorded files, adjust settings, and upgrade firmware.
Upgradable Functionality
Functions and features of Thermion models as well as their performance can be upgraded and improved with the release of new software.
User Friendly Controls
Thermion operation and adjustments are simple using the three function buttons on the top of the device and left side encoder. The three buttons and encoder provide access and management of all device menu options, settings, and system functions.
B-Pack Mini Combined Power System
Thermion riflescopes have a combined battery system which consists of two rechargeable batteries – internal and external. The external rechargeable battery ensures additional operation time and can be replaced in a matter of seconds.
SPECIFICATIONS
Sensor - 640x480 @ 17 µm (NETD <25 mK)
Objective lens - F50/1.0
Magnification, 2 – 16 x (x8 zoom)
Field of view (HxV), 12.4x9.3 / 21.8x16.3 degrees / m@100m
Detection range, 1800m
Sensor Type uncooled
Resolution, 640x480 pixels
Pixel pitch, 17 µm
NETD, <25mK
Frame rate, 50 Hz
Eye relief, 50 mm
Display Type AMOLED HD
Resolution, 1024x768 pixels
Laser Rangefinder - Safety class for laser equipment according to IEC 60825-1:2014
Click value, H/V, mm at 100 m -21 / 21 (on minimum magnification)
Click range, H/V, mm at 100 m - 4200 / 4200
Number of preloaded reticles - 10+
Video Recorder Video / photo resolution, 1024x768 pixel
Video / photo format .mp4 / .jpg
Built-in memory, 16 GB
Wi-Fi Wireless Standard 802,11 b/g
Frequency, 2.4 GHz
Line-of-sight reception range, 15 m
Degree of protection (waterproof), IPX7 IP code (IEC60529)
Operating temperature range, -25 – +50 °?
Max. recoil power on rifled weapon (Eo), 6000 Joules
Shock resistance on the smooth-bore rifles, 12 caliber
Mounting brackets on weapon Standard 30 mm rings
Power Supply Output voltage, 3.0 – 4.2 V
Battery type Dual Li-Ion B-Pack Mini Power System: 2 A·h Changeable Battery (external) / 3.2 A·h Battery (internal)
Capacity, 2000 (external) + 3200 (internal) mAh
Operating time on battery pack (at t=22°C), 10H
External power supply, 5 V (Micro USB Type B)
Body material Metal
Dimensions, 416x78x83 mm
Weight,0.9 kg
Part Number: YU76547
Product Code: YU76547
