Description

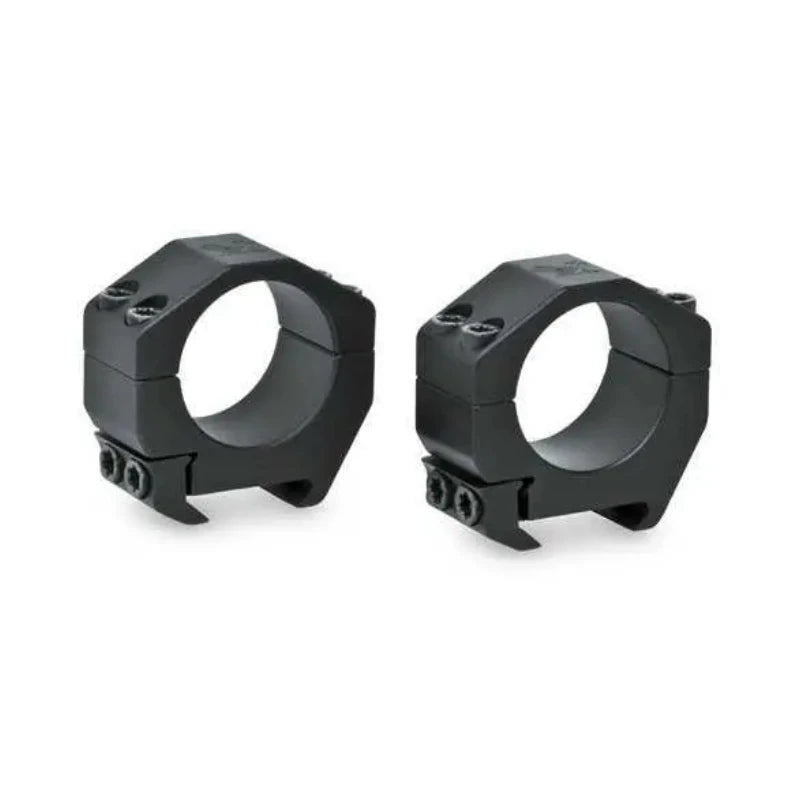

The Helix Optics Precision Match Ring Set – 34mm is available in Low, Medium, and High profiles, designed for Weaver-style bases and built to support large-diameter scopes with uncompromising alignment and durability.
🔧 Product Overview
These rings are engineered for 34mm scope tubes, offering tight tolerances, rugged construction, and repeatable zero retention for long-range shooting platforms. Each set is CNC-machined and finished in matte black anodizing, ideal for tactical, hunting, or competition use.
📏 Profile Options & Height Specs
| Profile |
Centerline Height (Approx.) |
Recommended Objective Size |
| Low |
~0.90" (22.9 mm) |
Up to 44mm objective |
| Medium |
~1.05" (26.7 mm) |
50mm objective |
| High |
~1.25" (31.8 mm) |
56mm+ objective or elevated cheek weld |
Heights may vary slightly by manufacturer batch.
🛠️ Technical Features
-
Tube Diameter: 34mm
-
Mounting Interface: Weaver-style base (not Picatinny unless specified)
-
Material: CNC-machined 6061-T6 or 7075-T6 aluminum
-
Finish: Type III hard anodized matte black
-
Design: Horizontally split rings with four Torx cap screws per ring
-
Torque Specs:
-
Weight: Approx. 1.6–2.4 oz per ring depending on profile
-
Extras: Serialized matched pairs, bead-blasted for uniform finish
✅ Ideal For:
-
Precision rifles with large objective scopes
-
Flat-top AR platforms needing elevated clearance
-
Shooters demanding consistent zero and rugged build quality
