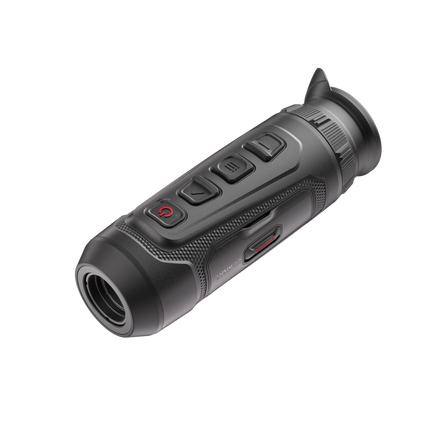

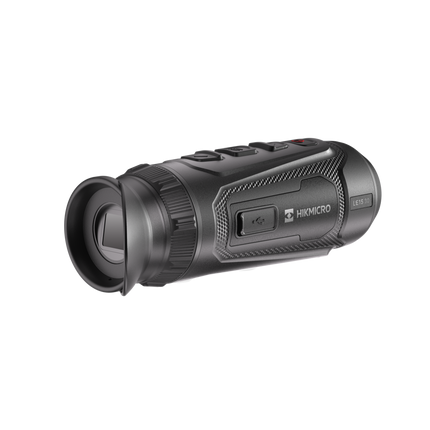

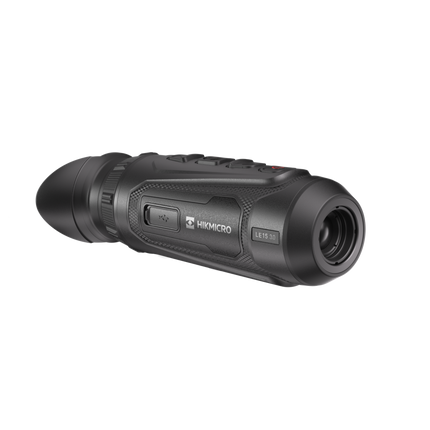

HIKMICRO LYNX 3.0 LE15 THERMAL MONOCULAR

Description

The HIKMICRO Lynx LE15 3.0 delivers a strong balance of performance and portability in a compact thermal monocular. Equipped with a 256 × 192 thermal detector and 15mm F1.0 lens, it offers a clear 2.2× base magnification, wide 11.7° field of view, and detection out to 750m.

With proven shutterless technology for uninterrupted viewing and a lightweight, easy-to-carry design, the LE15 3.0 is an ideal entry-level choice for outdoor users seeking dependable thermal performance.

Specifications
Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max Resolution 256 × 192
Frame Rate 50 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD < 20 mK (@25°C), F#=1.0
Lens (Focal Length) 15 mm, f1.0
Focus Mode Focus Free
Detection Range 750 m
Min Focusing Distance 7 m
Magnification 2.2× – 17.6× (8× digital)
Field of View 11.7° × 8.8° / 20.5 m × 15.4 m @100m
Image Display
Display 1024 × 768, 0.39-inch AMOLED
Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil 6 mm
Eye Relief 20 mm
Diopter Range -5D to +3D
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
Contrast Adjustment Yes
Zoom Pro N/A
HSIS Yes
Image Pro 3.0 Yes
System
Record Video Yes
Capture Snapshot Yes
Audio Recording Yes
Standby Mode Yes
Built-in Memory Built-in EMMC (64 GB)
PIP Yes
Hotspot 2.4 GHz / 5 GHz Wi-Fi
Hot Track Yes
Distance Measurement Yes
Local Album Yes
Power Supply
Battery Type Replaceable & Rechargeable Li-ion 18650
Battery Operating Time 6 hrs @25°C / 5.5 hrs @-20°C (hotspot on)
Type-C Power Supply 5V DC, 2A
External Power Support Yes, direct charging supported
General
Protection Level IP67
Dimensions 156.3 × 53.6 × 49.5 mm
Weight 296.5 g (with battery)
Working Temperature -30°C to 45°C, Humidity ≤90%
Product form

The HIKMICRO Lynx LE15 3.0 delivers a strong balance of performance and portability in a compact thermal monocular. Equipped with... Read more

SKU: 6974004648886

Sold Out

$999.00 Incl. GST

    Description

    The HIKMICRO Lynx LE15 3.0 delivers a strong balance of performance and portability in a compact thermal monocular. Equipped with a 256 × 192 thermal detector and 15mm F1.0 lens, it offers a clear 2.2× base magnification, wide 11.7° field of view, and detection out to 750m.

    With proven shutterless technology for uninterrupted viewing and a lightweight, easy-to-carry design, the LE15 3.0 is an ideal entry-level choice for outdoor users seeking dependable thermal performance.

    Specifications
    Thermal Module
    Image Sensor VOx Uncooled Focal Plane Arrays
    Max Resolution 256 × 192
    Frame Rate 50 Hz
    Pixel Interval 12 μm
    Response Waveband 8 μm to 14 μm
    NETD < 20 mK (@25°C), F#=1.0
    Lens (Focal Length) 15 mm, f1.0
    Focus Mode Focus Free
    Detection Range 750 m
    Min Focusing Distance 7 m
    Magnification 2.2× – 17.6× (8× digital)
    Field of View 11.7° × 8.8° / 20.5 m × 15.4 m @100m
    Image Display
    Display 1024 × 768, 0.39-inch AMOLED
    Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
    Exit Pupil 6 mm
    Eye Relief 20 mm
    Diopter Range -5D to +3D
    Brightness Adjustment Yes
    Tone Adjustment Cold, Warm
    Contrast Adjustment Yes
    Zoom Pro N/A
    HSIS Yes
    Image Pro 3.0 Yes
    System
    Record Video Yes
    Capture Snapshot Yes
    Audio Recording Yes
    Standby Mode Yes
    Built-in Memory Built-in EMMC (64 GB)
    PIP Yes
    Hotspot 2.4 GHz / 5 GHz Wi-Fi
    Hot Track Yes
    Distance Measurement Yes
    Local Album Yes
    Power Supply
    Battery Type Replaceable & Rechargeable Li-ion 18650
    Battery Operating Time 6 hrs @25°C / 5.5 hrs @-20°C (hotspot on)
    Type-C Power Supply 5V DC, 2A
    External Power Support Yes, direct charging supported
    General
    Protection Level IP67
    Dimensions 156.3 × 53.6 × 49.5 mm
    Weight 296.5 g (with battery)
    Working Temperature -30°C to 45°C, Humidity ≤90%
