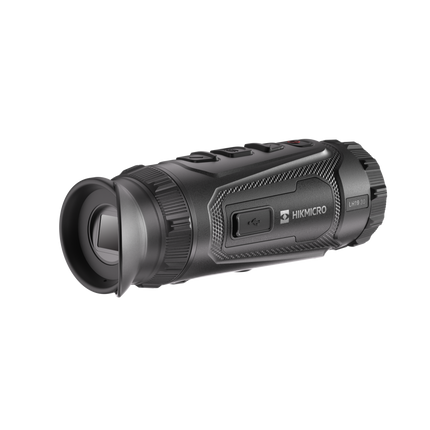

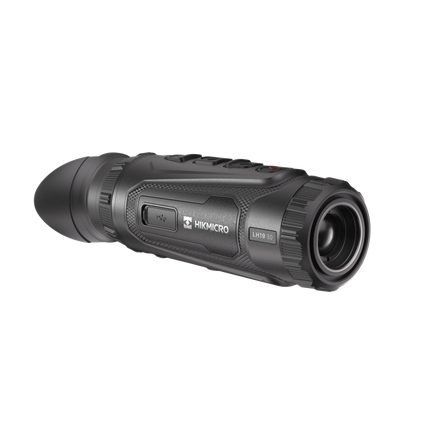

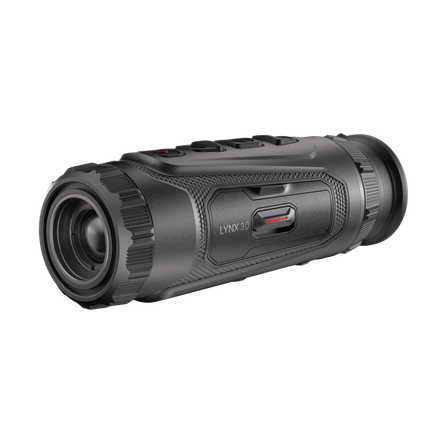

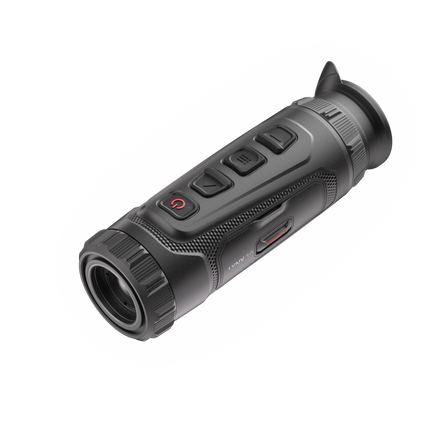

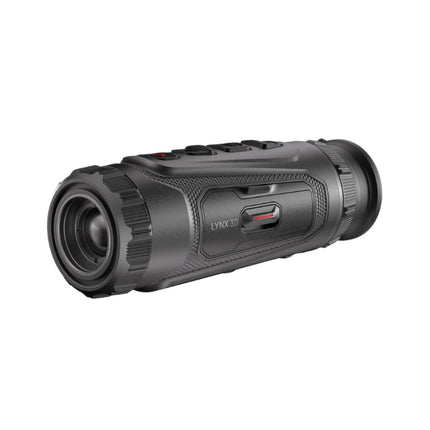

HIKMICRO LYNX 3.0 LH19 THERMAL MONOCULAR

Description

With its 1.9x base magnification, 384 x 288 detector and a 19mm F1.0 lens, the HIKMICRO Lynx LH19 3.0 offers a versatile solution for demanding scenarios.

It delivers a 13.8° (24m @ 100m) wide field of view and a detection range of up to 900m, making it ideal for hunters and outdoor explorers who need a compact yet powerful device with shutterless imaging technology.

Specification
Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 384 × 288
Frame Rate 50 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD Less than 15 mK (@25°C), F#=1.0
Lens (Focal Length) 19 mm, F1.0
Focus Mode Focus Wheel
Min. Focusing Distance 3 m
Magnification 1.9 × - 15.2 × (8 ×)
Field of View(H × V), Degrees / m @100 m 13.8° × 8.4°/24.2 m × 14.7 m
Detection Range 900 m
Image Display
Display 1920 × 1080, 0.49 inch, AMOLED
Contrast Adjustment Yes
Brightness Adjustment Yes
Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil 6 mm
Eye Relief 20 mm
Diopter (Range) -5 D to +3 D
Tone Adjustment Cold, warm
Zoom Pro Yes
HSIS (HIKMICRO Shutterless Image System) Yes
Image Pro 3.0 Yes
Sync Pro Yes
System
Storage Built-in EMMC (64GB)
Record Video Yes
Capture Snapshot Yes
Local Album Yes
Standby Mode Yes
PIP Yes
Hotspot 2.4/5 G WiFi Waveband
Hot Track Yes
Distance Measurement Yes
Audio Recording Yes
Power Supply
Battery Type Replaceable and rechargeable 18650 battery
Battery Operating Time ≥5h (@25°C, WiFi on)
≥4.5h (@-20°C, WiFi on)
Product form

With its 1.9x base magnification, 384 x 288 detector and a 19mm F1.0 lens, the HIKMICRO Lynx LH19 3.0 offers a versatile... Read more

SKU: 6974004648701

Sold Out

$1,899.00 Incl. GST

    Description

    With its 1.9x base magnification, 384 x 288 detector and a 19mm F1.0 lens, the HIKMICRO Lynx LH19 3.0 offers a versatile solution for demanding scenarios.

    It delivers a 13.8° (24m @ 100m) wide field of view and a detection range of up to 900m, making it ideal for hunters and outdoor explorers who need a compact yet powerful device with shutterless imaging technology.

    Specification
    Thermal Module
    Image Sensor VOx Uncooled Focal Plane Arrays
    Max. Resolution 384 × 288
    Frame Rate 50 Hz
    Pixel Interval 12 μm
    Response Waveband 8 μm to 14 μm
    NETD Less than 15 mK (@25°C), F#=1.0
    Lens (Focal Length) 19 mm, F1.0
    Focus Mode Focus Wheel
    Min. Focusing Distance 3 m
    Magnification 1.9 × - 15.2 × (8 ×)
    Field of View(H × V), Degrees / m @100 m 13.8° × 8.4°/24.2 m × 14.7 m
    Detection Range 900 m
    Image Display
    Display 1920 × 1080, 0.49 inch, AMOLED
    Contrast Adjustment Yes
    Brightness Adjustment Yes
    Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
    Exit Pupil 6 mm
    Eye Relief 20 mm
    Diopter (Range) -5 D to +3 D
    Tone Adjustment Cold, warm
    Zoom Pro Yes
    HSIS (HIKMICRO Shutterless Image System) Yes
    Image Pro 3.0 Yes
    Sync Pro Yes
    System
    Storage Built-in EMMC (64GB)
    Record Video Yes
    Capture Snapshot Yes
    Local Album Yes
    Standby Mode Yes
    PIP Yes
    Hotspot 2.4/5 G WiFi Waveband
    Hot Track Yes
    Distance Measurement Yes
    Audio Recording Yes
    Power Supply
    Battery Type Replaceable and rechargeable 18650 battery
    Battery Operating Time ≥5h (@25°C, WiFi on)
    ≥4.5h (@-20°C, WiFi on)
