Description

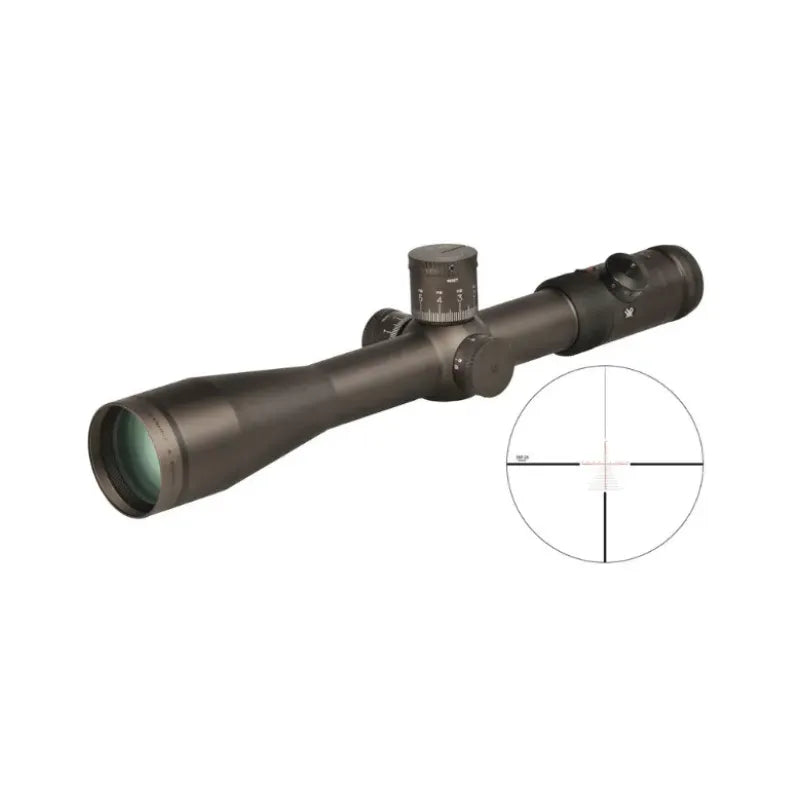

The Vortex Razor HD 5-20x50 is a state-of-the-art long-range riflescope built to meet the demands of precision shooters. Constructed on a solid 35mm one-piece tube, it features a precision-etched first focal plane EBR-2B MRAD reticle for accurate ranging, holdover, and windage corrections.
Optical Features
-
First Focal Plane: Subtensions remain consistent throughout the magnification range.
-
APO Objective Lens System: Corrects color across the spectrum, eliminating chromatic aberration.
-
Optically Indexed Lenses: Ensures sharpness and brightness across the field of view.
-
HD Lens Elements: High-density glass delivers high definition images.
-
XR Lens Coatings: Vortex proprietary fully multi-coated lenses maximize brightness.
Construction
-
35mm Tube: Allows a greater range of windage and elevation adjustment.
-
One-Piece Tube: Enhances alignment, strength, and water resistance.
-
Aircraft Grade Aluminum: Increases strength and rigidity.
-
Waterproof and Fogproof: O-ring seals and argon gas filling ensure reliable performance.
-
Shockproof: Machined locking rings keep lenses in alignment.
-
Hard Anodized Finish: Durable low-glare matte finish.
-
ArmorTek: Scratch-resistant coating protects exterior lenses.
Internal Mechanism Design
-
RZR Zero Stop: Stops the turret from dialing below sight-in range.
-
RZR Tall Uncapped Turrets: Quick adjustments and easy range calculation.
-
Friction Reduction System: Enhances durability and accuracy.
-
Precision Turret Screws: Low friction and wear-resistant performance.
-
Erector Tube System: Ensures precise elevation and windage adjustments.
-
Single Spring Construction: Improves accuracy and predictability.
-
Glass Etched Reticle: Protected between two layers of glass.
-
Illuminated Reticle: Suitable for daytime, low light, and night vision use.
-
Illumination Control: Easy access to preferred illumination settings.
Convenience Features
-
MAG View: Clear viewing of magnification in low light.
-
Radius Bar: Illuminated turret rotation indicator.
-
Fast Focus Eyepiece: Quick reticle focusing.
-
Side Parallax: Eliminates parallax shooting error.
-
Sunshade: Reduces glare.
-
Bubble Level: Ensures consistent shooting form.
-
ARD Flip Cap Cover: Reduces glare and protects the lens.
-
2mm Hex Wrench: For setting the RZR Zero Stop.
Specifications
-
Magnification: 5-20X
-
Objective Lens Diameter: 50 mm
-
Eye Relief: 3.9 inches
-
Field of View: 22-5.76 feet/100 yards
-
Tube Size: 35 mm
-
Turret Style: Tall Uncapped - RZR Zero Stop
-
Adjustment Graduation: 0.1 mrad
-
Travel per Rotation: 10 mrads
-
Max Elevation Adjustment: 36 mrads
-
Max Windage Adjustment: 36 mrads
-
Parallax Setting: 40 yards to Infinity
-
Length: 15.8 inches / 40 cm
-
Weight: 35.2 ounces / 998 grams
The Vortex Razor HD 5-20x50 is built for precision and performance, making it a top choice for long-range shooters.
